HIF3BB-50PA-2.54DSA(71) - Hirose

Description: HIF3B 2.54mm shrouded PCB header, 50P Hirose HIF3B Series, Series Number 3BB, 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A

Download HIF3BB-50PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3BB-50PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

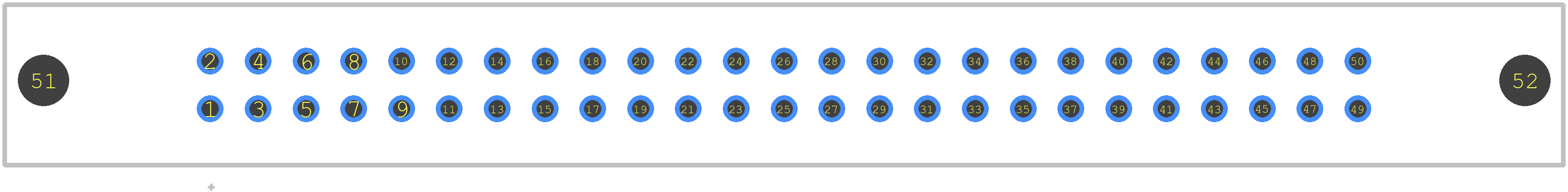

HIF3BB-50PA-2.54DSA(71) - Hirose PCB footprint - Other - Other - HIF3BB-50PA-2.54DSA(71)
click to zoom

HIF3BB-50PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3BB-50PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

HIF3BB-50PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
  • Yes, the HIF3BB-50PA-2.54DSA(71) is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and ratings.
  • The operating temperature range for the HIF3BB-50PA-2.54DSA(71) is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
  • Yes, the HIF3BB-50PA-2.54DSA(71) is compatible with lead-free soldering processes. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific soldering profile recommendations.
  • The mating cycle life of the HIF3BB-50PA-2.54DSA(71) is 500 cycles minimum. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle life ratings and testing information.
