HIF3BB-64PA-2.54DSA(71) - Hirose

Description: Hirose HIF3B Series, Series Number 3BB, 2.54mm Pitch 64 Way 2 Row Straight PCB Header, Solder Termination, 1A

Download HIF3BB-64PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3BB-64PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

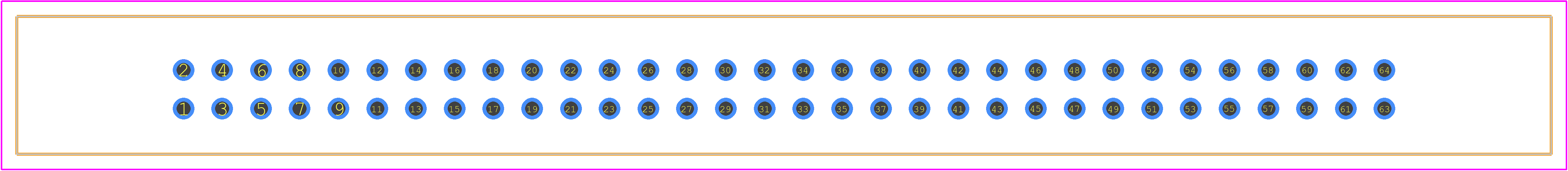

HIF3BB-64PA-2.54DSA(71) - Hirose PCB footprint - Other - Other - HIF3BB-64PA-2.54DSA(71)
click to zoom
3D Models
HIF3BB-64PA-2.54DSA(71) - Hirose - 3D model - Other - HIF3BB-64PA-2.54DSA(71)
click to zoom

HIF3BB-64PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3BB-64PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0
