HIF3BD-10PA-2.54DSA(63) - Hirose

Description: Connector Header Through Hole 10 position 0.100" (2.54mm)

Download HIF3BD-10PA-2.54DSA(63) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3BD-10PA-2.54DSA(63) - Hirose - PCB symbol
click to zoom
PCB Footprints

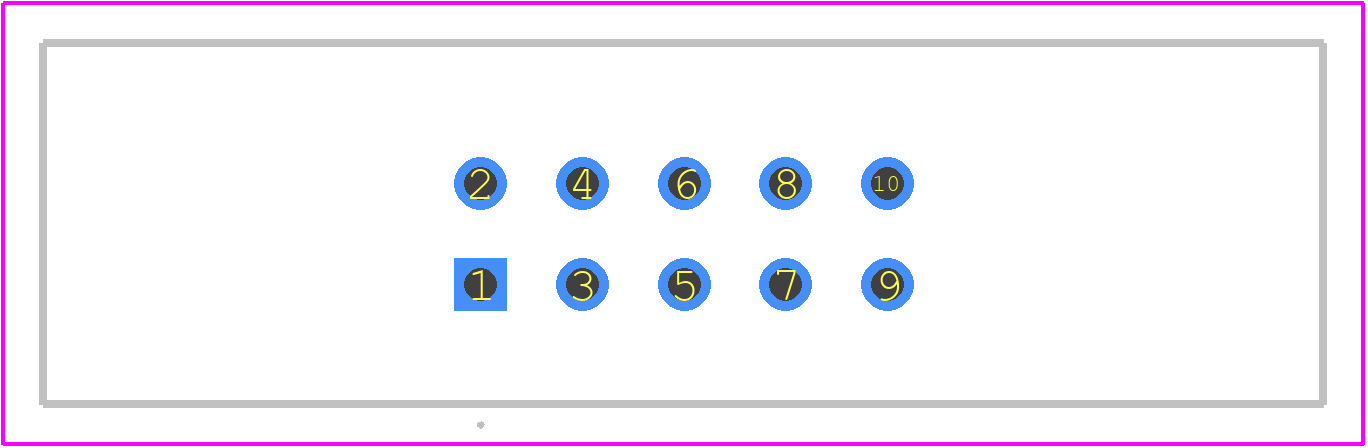

HIF3BD-10PA-2.54DSA(63) - Hirose PCB footprint - Other - Other - HIF3BD-10PA-2.54DSA(63)-1
click to zoom
3D Models
HIF3BD-10PA-2.54DSA(63) - Hirose - 3D model - Other - HIF3BD-10PA-2.54DSA(63)-1
click to zoom

HIF3BD-10PA-2.54DSA(63) Details

  • Manufacturer Part Number:

    HIF3BD-10PA-2.54DSA(63)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

HIF3BD-10PA-2.54DSA(63) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
  • Yes, the HIF3BD-10PA-2.54DSA(63) is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and ratings.
  • The operating temperature range for the HIF3BD-10PA-2.54DSA(63) is -40°C to 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating information.
  • Yes, the HIF3BD-10PA-2.54DSA(63) is compatible with lead-free soldering processes. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific soldering profile recommendations.
  • The mating cycle rating for the HIF3BD-10PA-2.54DSA(63) is 500 cycles. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific mating cycle ratings and testing information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3BD-10PA-2.54DSA(63) Overview

Use the download button to access the HIF3BD-10PA-2.54DSA(63) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B, or try a keyword search, such as Headers and Edge Type Connectors
