HIF3BD-10PA-2.54DSA(75) - Hirose

Description: Connector Header Through Hole 10 position 0.100" (2.54mm)

Download HIF3BD-10PA-2.54DSA(75) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3BD-10PA-2.54DSA(75) - Hirose - PCB symbol
click to zoom

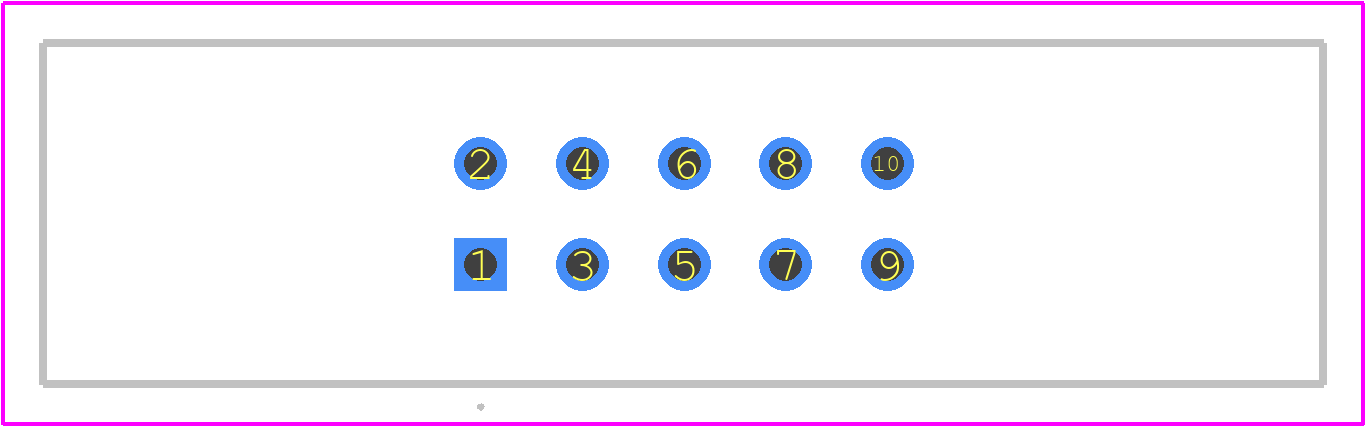

PCB Footprints
HIF3BD-10PA-2.54DSA(75) - Hirose PCB footprint - Other - Other - HIF3BD-10PA-2.54DSA(75)-2
click to zoom
3D Models
HIF3BD-10PA-2.54DSA(75) - Hirose - 3D model - Other - HIF3BD-10PA-2.54DSA(75)-2
click to zoom

HIF3BD-10PA-2.54DSA(75) Details

  • Manufacturer Part Number:

    HIF3BD-10PA-2.54DSA(75)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    2

  • Connector Type:

    BOARD CONNECTOR

HIF3BD-10PA-2.54DSA(75) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the screws on the HIF3BD-10PA-2.54DSA(75) connector.
  • Yes, the HIF3BD-10PA-2.54DSA(75) connector is designed to withstand vibrations up to 10G (10 Hz to 2 kHz) and is suitable for high-vibration applications.
  • The operating temperature range for the HIF3BD-10PA-2.54DSA(75) connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the HIF3BD-10PA-2.54DSA(75) connector is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The mating cycle life of the HIF3BD-10PA-2.54DSA(75) connector is 500 cycles minimum.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3BD-10PA-2.54DSA(75) Overview

Use the download button to access the HIF3BD-10PA-2.54DSA(75) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B, or try a keyword search, such as Headers and Edge Type Connectors
