HIF3CA-40PA-2.54DSA(71) - Hirose

Description: CONN HEADER VERT 40POS 2.54MM

Download HIF3CA-40PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3CA-40PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

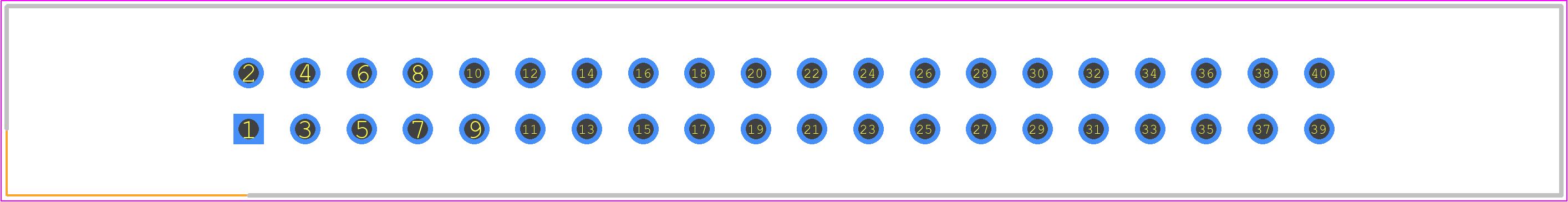

HIF3CA-40PA-2.54DSA(71) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HIF3CA-40PA-2.54DSA(71)
click to zoom
3D Models
HIF3CA-40PA-2.54DSA(71) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - HIF3CA-40PA-2.54DSA(71)
click to zoom

HIF3CA-40PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3CA-40PA-2.54DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

HIF3CA-40PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the HIF3CA-40PA-2.54DSA(71) is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 100G (11ms), making it suitable for use in high-vibration environments.
  • Yes, the HIF3CA-40PA-2.54DSA(71) has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • The maximum operating temperature range for the HIF3CA-40PA-2.54DSA(71) is -40°C to 105°C, as specified in the datasheet.
  • Yes, the HIF3CA-40PA-2.54DSA(71) is designed to accommodate cables with gauges ranging from AWG24 to AWG16, but it's recommended to check the specific cable requirements and compatibility before use.
