HIF3CD-10PA-2.54DSA(71) - Hirose

Description: CONN HEADER VERT 10POS 2.54MM

Download HIF3CD-10PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3CD-10PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom

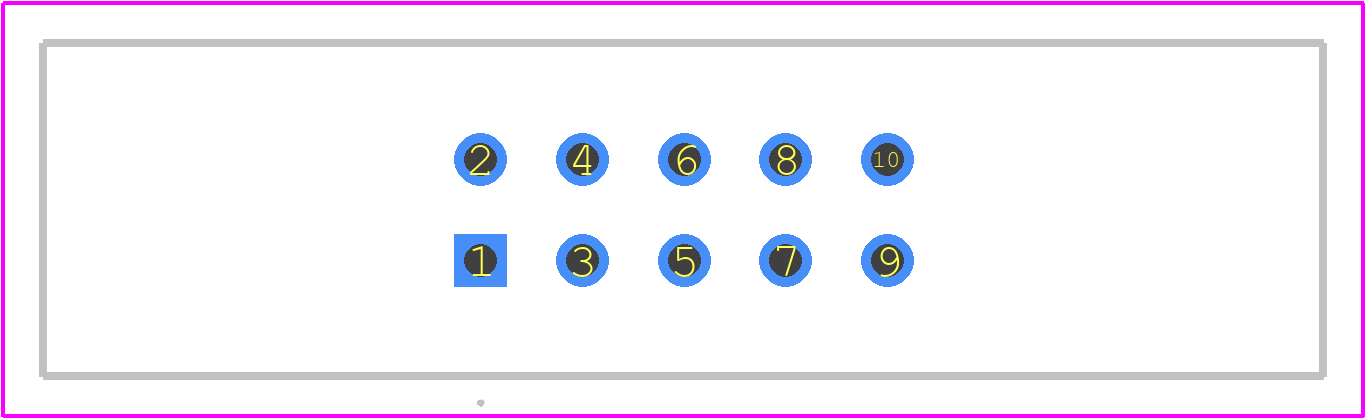

PCB Footprints
HIF3CD-10PA-2.54DSA(71) - Hirose PCB footprint - Other - Other - HIF3CD-10PA-2.54DSA(71)-4
click to zoom
3D Models
HIF3CD-10PA-2.54DSA(71) - Hirose - 3D model - Other - HIF3CD-10PA-2.54DSA(71)-4
click to zoom

HIF3CD-10PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3CD-10PA-2.54DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

HIF3CD-10PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the M2 screws.
  • Yes, the connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2,000 Hz.
  • The connector is rated for operating temperatures from -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's essential to follow the recommended storage and operating conditions to ensure reliability.
  • The connector is rated for a minimum of 500 mating cycles.
  • Yes, the connector is designed for automated assembly and inspection, with features such as a pick-and-place area and a visual inspection hole.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3CD-10PA-2.54DSA(71) Overview

Use the download button to access the HIF3CD-10PA-2.54DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3C, or try a keyword search, such as Headers and Edge Type Connectors
