HIF3F-10PA-2.54DSA(71) - Hirose

Description: Hirose HIF3F Series, 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A

Download HIF3F-10PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3F-10PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

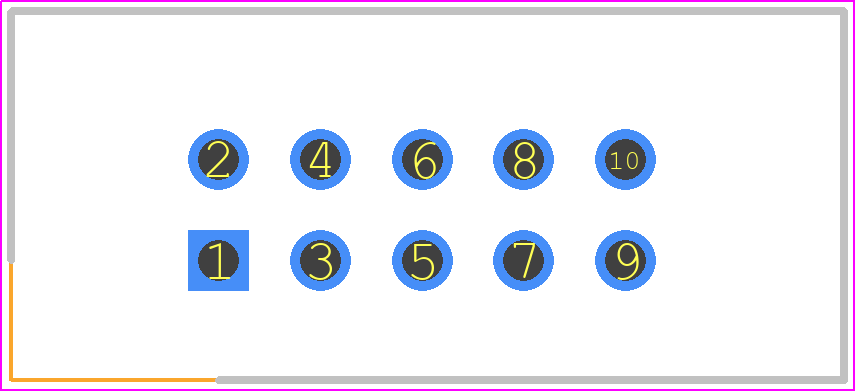

HIF3F-10PA-2.54DSA(71) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 37.31
click to zoom
3D Models
HIF3F-10PA-2.54DSA(71) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - 37.31
click to zoom

HIF3F-10PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3F-10PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

HIF3F-10PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's essential to consult the datasheet and follow the manufacturer's guidelines for specific torque values.
  • Yes, the HIF3F-10PA-2.54DSA(71) is designed to withstand vibrations and can be used in high-vibration environments. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity.
  • The operating temperature range for the HIF3F-10PA-2.54DSA(71) is -40°C to 105°C. However, it's essential to consult the datasheet for specific temperature ratings and derating factors.
  • The HIF3F-10PA-2.54DSA(71) is rated for a maximum current of 1 A per contact. While it can handle moderate current levels, it's not suitable for high-current applications. Consult the datasheet for specific current ratings and derating factors.
  • The HIF3F-10PA-2.54DSA(71) has a IP67 rating, making it suitable for use in harsh environments, including exposure to water and some chemicals. However, it's essential to consult the datasheet and follow the manufacturer's guidelines for specific environmental ratings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3F-10PA-2.54DSA(71) Overview

Use the download button to access the HIF3F-10PA-2.54DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3F, or try a keyword search, such as Headers and Edge Type Connectors
