Part Image

HIF3F-50PA-2.54DSA(71) - Hirose

Description: Connector Header Through Hole 50 position 0.100" (2.54mm)

Download HIF3F-50PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3F-50PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

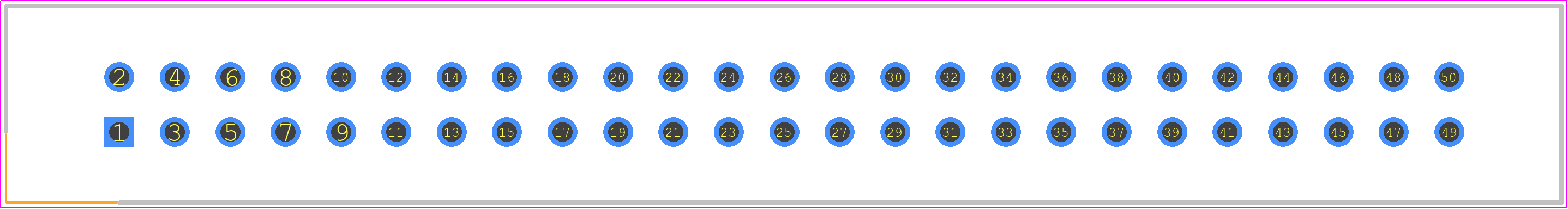

HIF3F-50PA-2.54DSA(71) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HIF3F-50PA-2.54DSA(71)
click to zoom
3D Models
HIF3F-50PA-2.54DSA(71) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - HIF3F-50PA-2.54DSA(71)
click to zoom

HIF3F-50PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3F-50PA-2.54DSA(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

HIF3F-50PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the M2 screws.
  • Yes, the connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz.
  • The connector is rated for operating temperatures from -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's essential to follow the recommended storage and operating conditions to ensure reliability.
  • The connector is rated for a minimum of 500 mating cycles.
  • Yes, the connector is designed for automated assembly and inspection, with features such as a pick-and-place area and a visual inspection hole.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3F-50PA-2.54DSA(71) Overview

Use the download button to access the HIF3F-50PA-2.54DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3F, or try a keyword search, such as Headers and Edge Type Connectors
