HIF3FBA-64PA-2.54DSA(71) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

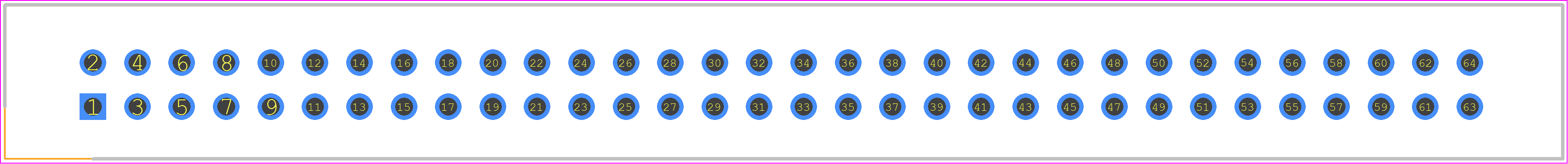

HIF3FBA-64PA-2.54DSA(71) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HIF3FBA-64PA-2.54DSA(71)

click to zoom

3D Models

HIF3FBA-64PA-2.54DSA(71) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - HIF3FBA-64PA-2.54DSA(71)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HIF3FBA-64PA-2.54DSA(71)
Part Number HIF3FBA-64PA-2.54DSA(71)
Manufacturer Hirose
Pin Count 64
Part Category Connector
Package Category Header, Shrouded - Straight PTH Box
Footprint Name Header, Shrouded - Straight PTH Box - HIF3FBA-64PA-2.54DSA(71)
Released Date Oct 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HIF3FBA-64PA-2.54DSA(71) Details

Manufacturer Part Number:
HIF3FBA-64PA-2.54DSA(71)
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
2
Connector Type:
BOARD CONNECTOR

Trust Checks

Community Provided

System Verified

Community Approved

HIF3FBA-64PA-2.54DSA(71) Overview

Use the download button to access the HIF3FBA-64PA-2.54DSA(71) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HIF3F, or try a keyword search, such as Headers and Edge Type Connectors
