HIF3FC-16PA-2.54DSA(71) - Hirose

Description: Connector, ribbon cable, straight 16 way Hirose HIF3FC Series, 2.54mm Pitch 16 Way 2 Row Shrouded Straight PCB Header, Through Hole, Solder Termination

Download HIF3FC-16PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3FC-16PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

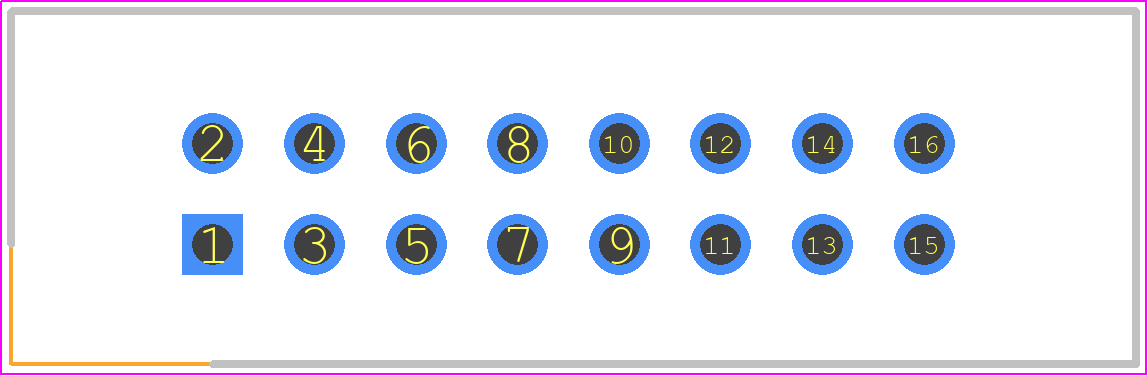

HIF3FC-16PA-2.54DSA(71) - Hirose PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HIF3FC-16PA-2.54DSA(71)
click to zoom
3D Models
HIF3FC-16PA-2.54DSA(71) - Hirose - 3D model - Header, Shrouded - Straight PTH Box - HIF3FC-16PA-2.54DSA(71)
click to zoom

HIF3FC-16PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    HIF3FC-16PA-2.54DSA(71)

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.5

  • Connector Type:

    BOARD CONNECTOR

HIF3FC-16PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
  • Yes, the HIF3FC-16PA-2.54DSA(71) is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
  • The operating temperature range for the HIF3FC-16PA-2.54DSA(71) is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the HIF3FC-16PA-2.54DSA(71) is compatible with lead-free soldering processes. However, it's recommended to consult the datasheet and follow the recommended soldering profiles to ensure reliable connections.
  • The mating cycle life of the HIF3FC-16PA-2.54DSA(71) is 500 cycles minimum. However, this may vary depending on the application and usage. It's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
