Technical Content
Part Image

HIF6A-20DA-1.27DSA(71) - Hirose

Description: Hirose 1.27mm 20 Way 2 Row Straight PCB Socket Through Hole Socket Strip

Download HIF6A-20DA-1.27DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

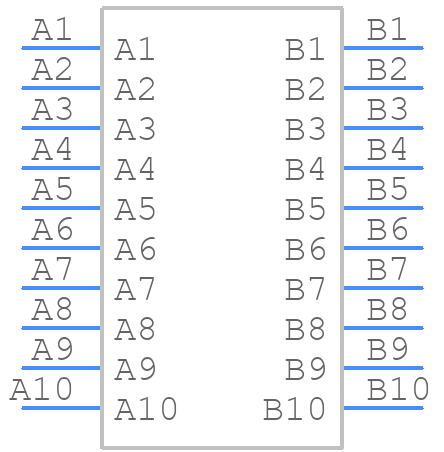

HIF6A-20DA-1.27DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

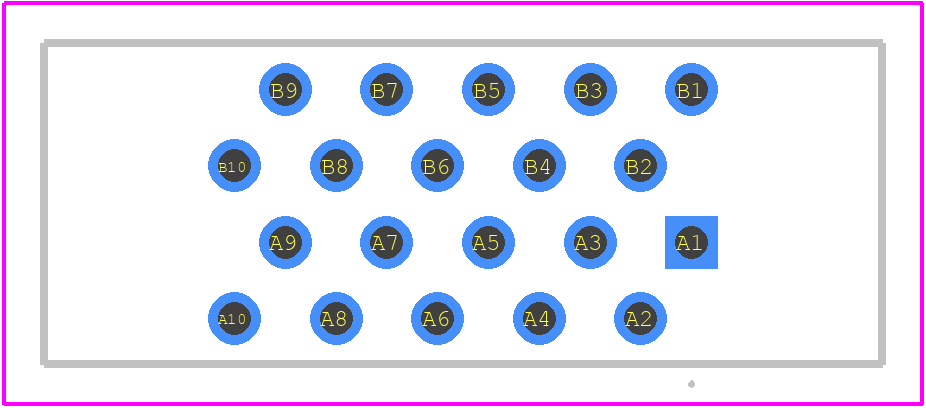

HIF6A-20DA-1.27DSA(71) - Hirose PCB footprint - Other - Other - HIF6A-20DA-1.27DSA(71)-1
click to zoom
3D Models
HIF6A-20DA-1.27DSA(71) - Hirose - 3D model - Other - HIF6A-20DA-1.27DSA(71)-1
click to zoom

HIF6A-20DA-1.27DSA(71) Details

  • Manufacturer Part Number:

    HIF6A-20DA-1.27DSA(71)

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.15

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

HIF6A-20DA-1.27DSA(71) Frequently Asked Questions (FAQs)

  • The recommended mating sequence for HIF6A-20DA-1.27DSA(71) is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the HIF6A-20DA-1.27DSA(71) is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
  • The maximum operating temperature for HIF6A-20DA-1.27DSA(71) is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • The HIF6A-20DA-1.27DSA(71) has a IP67 rating, which means it can withstand immersion in water up to 1 meter for 30 minutes. However, it's not recommended for exposure to harsh chemicals. Consult the datasheet for specific environmental ratings.
  • The recommended cable size and type for HIF6A-20DA-1.27DSA(71) is AWG 24-30, with a maximum outer diameter of 1.5 mm. It's essential to follow the recommended cable specifications to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF6A-20DA-1.27DSA(71) Overview

Use the download button to access the HIF6A-20DA-1.27DSA(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF6A, or try a keyword search, such as Headers and Edge Type Connectors
