HIP2104FRAANZ-T - Renesas Electronics

Description: The HIP2103 and HIP2104 are half-bridge drivers designed for applications using DC motors, 3-phase brushless DC motors, or other similar loads. The two inputs (HI and LI) independently control the high-side driver (HO) and the low-side driver (LO). HI and LI can be configured to enable/disable the device, which lowers the number of connections to a microcontroller and the cost. The low IDD bias current in the Sleep Mode prevents battery drain when the device is not in use, which eliminates the need for an e

Download HIP2104FRAANZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

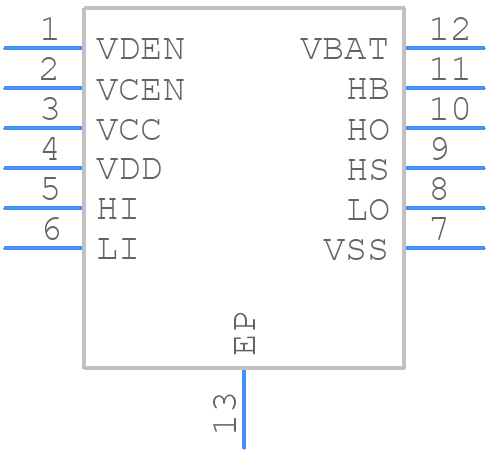

HIP2104FRAANZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HIP2104FRAANZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 12 Ld 4x4 DFN
click to zoom
3D Models
HIP2104FRAANZ-T - Renesas Electronics - 3D model - Small Outline No-lead - 12 Ld 4x4 DFN
click to zoom

HIP2104FRAANZ-T Details

  • Manufacturer Part Number:

    HIP2104FRAANZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    L12.4X4A

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.04 mA

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    18 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.039 µs

  • Turn-on Time:

    0.037 µs

  • Width:

    4 mm

HIP2104FRAANZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN9854, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, heat sinks, and proper airflow to maintain a safe operating temperature.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and prevent thermal-related issues.
  • To troubleshoot OCP-related issues, start by verifying that the input voltage and current are within the recommended specifications. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes for guidance on OCP threshold and response time.
  • Not using the recommended input capacitor values and types can lead to instability, oscillations, or even device failure. The input capacitors play a critical role in filtering and decoupling the input voltage, so it's essential to follow the recommended values and types to ensure reliable operation.
