HIP2104FRAANZ-T7A - Renesas Electronics

Description: The HIP2103 and HIP2104 are half-bridge drivers designed for applications using DC motors, 3-phase brushless DC motors, or other similar loads. The two inputs (HI and LI) independently control the high-side driver (HO) and the low-side driver (LO). HI and LI can be configured to enable/disable the device, which lowers the number of connections to a microcontroller and the cost. The low IDD bias current in the Sleep Mode prevents battery drain when the device is not in use, which eliminates the need for an e

Download HIP2104FRAANZ-T7A Model
Schematic

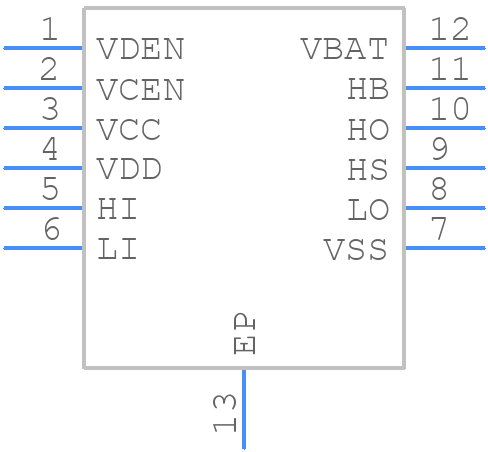

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HIP2104FRAANZ-T7A - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 12 Ld 4x4 DFN
click to zoom
3D Models
HIP2104FRAANZ-T7A - Renesas Electronics  - 3D model - Small Outline No-lead - 12 Ld 4x4 DFN
click to zoom

HIP2104FRAANZ-T7A Details

  • Manufacturer Part Number:

    HIP2104FRAANZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    L12.4X4A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.04 mA

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    18 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.039 µs

  • Turn-on Time:

    0.037 µs

  • Width:

    4 mm
