Description:The HIP2103 and HIP2104 are half-bridge drivers designed for applications using DC motors, 3-phase brushless DC motors, or other similar loads. The two inputs (HI and LI) independently control the high-side driver (HO) and the low-side driver (LO). HI and LI can be configured to enable/disable the device, which lowers the number of connections to a microcontroller and the cost. The low IDD bias current in the Sleep Mode prevents battery drain when the device is not in use, which eliminates the need for an e
Renesas provides a recommended PCB layout guide in their application note (APN-45) for the HIP2104FRAANZ. It suggests using a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider using thermal interface materials (TIMs) to reduce thermal resistance. Additionally, derating the device's power dissipation and using a thermal shutdown circuit can help prevent overheating.
Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. The specific capacitor values and types may vary depending on the application's requirements and operating conditions.
Renesas provides a troubleshooting guide in their application note (APN-45) that covers common issues, such as overheating, output voltage regulation, and input voltage range. Additionally, using oscilloscopes and other diagnostic tools can help identify and isolate problems.
Different package types or variants of the HIP2104FRAANZ may have varying thermal performance, pinouts, and operating conditions. It's essential to consult the datasheet and application notes for the specific package type or variant being used to ensure proper design and operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP2104FRAANZ Overview

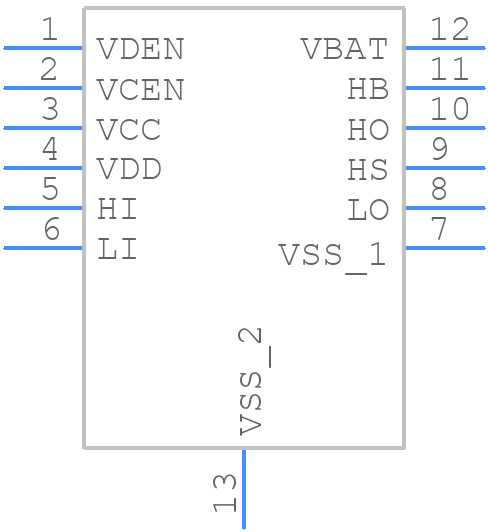

Use the download button to access the HIP2104FRAANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIP21,
or try a keyword search, such as MOSFET Drivers
