Description:The HIP2105 and HIP2106A are high frequency MOSFET drivers optimized to drive two N-channel power MOSFETs in a synchronous buck converter topology. The HIP2105 has HI/LI inputs and the HIP2106A has a single PWM input. Both these drivers, combined with Renesas multi-phase buck PWM controllers, form a complete single-stage core-voltage regulator solution with high-efficiency performance at high switching frequency for advanced microprocessors. The HIP2105 and HIP2106A are biased by a single low voltage supply
Renesas provides a recommended PCB layout in the HIP2105FRZ application note (R16AN0244) that includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure proper airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
Although the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, the absolute maximum rating for the VCC pin is 6V. However, it's essential to note that operating the device at voltages above 5.5V may reduce its reliability and lifespan.
Yes, the HIP2105FRZ is designed to handle high currents up to 50A. However, it's crucial to ensure that the device is properly cooled, and the PCB is designed to handle the high currents. Additionally, consider using a suitable current sense resistor and implementing overcurrent protection mechanisms to prevent damage to the device.
Renesas provides a troubleshooting guide in the HIP2105FRZ application note (R16AN0244) that covers common issues and their solutions. Additionally, consider using a logic analyzer or oscilloscope to debug the device's operation and identify potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP2105FRZ Overview

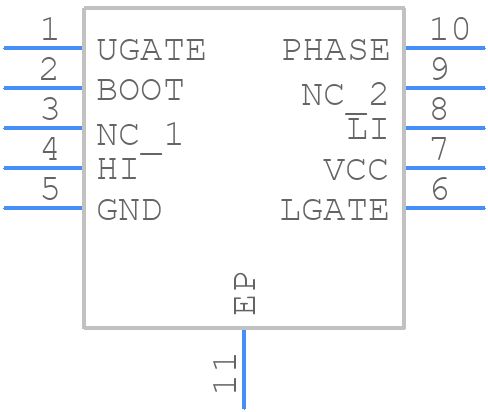

Use the download button to access the HIP2105FRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIP21,
or try a keyword search, such as MOSFET Drivers
