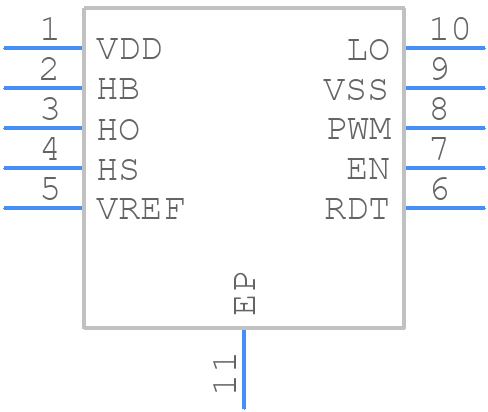

HIP2210FRTZ - Renesas Electronics

HIP2210FRTZ Details

• Manufacturer Part Number:

  HIP2210FRTZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TDFN

• Pin Count:

  10

• Manufacturer Package Code:

  L10.4X4

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Date Of Intro:

  2020-06-23

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.16,32

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.75 mm

• Supply Current-Max:

  1.69 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  6 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  115 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.04 µs

• Turn-on Time:

  0.04 µs

• Width:

  4 mm
