Description:The HIP4080A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4080A includes an input comparator, used to facilitate the hysteresis and PWM modes of operation. Its HEN (high enable) lead can force current to freewheel in the bottom two external power MOSFETs, maintaining the upper power MOSFETs off. Since it can switch at frequencies up to 1MHz, the HIP4080A is well suited for driving Voice Coil Motors, switching power amplif
A 4-layer PCB with a solid ground plane, separate power and ground planes for the high-current paths, and a thermal relief pattern for the exposed pad is recommended. Additionally, keep the high-current paths short and wide, and use a common mode choke to reduce EMI.
Use a thermal interface material (TIM) between the device and the heat sink, ensure good airflow around the heat sink, and consider using a fan to improve cooling. Also, ensure the PCB is designed to dissipate heat efficiently.
Choose an input capacitor with a low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. A ceramic or film capacitor with an X7R or X5R dielectric is recommended.
Use a low-inductance layout, minimize the length of the high-frequency paths, and use a shielded inductor. Also, consider using a spread-spectrum clock generator to reduce EMI.
Ensure each device has its own input capacitor, use a common mode choke to reduce EMI, and consider using a master-slave configuration to improve current sharing. Also, ensure the devices are properly synchronized to prevent beat frequencies.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP4080AIBZ Overview

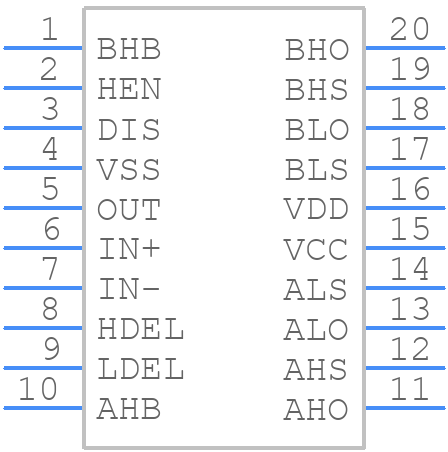

Use the download button to access the HIP4080AIBZ schematic symbol, PCB footprint, and 3D model.
