Description:The HIP4080A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4080A includes an input comparator, used to facilitate the hysteresis and PWM modes of operation. Its HEN (high enable) lead can force current to freewheel in the bottom two external power MOSFETs, maintaining the upper power MOSFETs off. Since it can switch at frequencies up to 1MHz, the HIP4080A is well suited for driving Voice Coil Motors, switching power amplif
A good PCB layout for the HIP4080AIBZT involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
To ensure the HIP4080AIBZT operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure to follow the recommended operating conditions and thermal management guidelines outlined in the datasheet. Additionally, use a thermal interface material (TIM) and a heat sink if necessary.
When selecting input and output capacitors for the HIP4080AIBZT, consider the voltage rating, capacitance value, equivalent series resistance (ESR), and ripple current rating. Choose capacitors with low ESR and high ripple current ratings to minimize losses and ensure reliable operation.
To troubleshoot issues with the HIP4080AIBZT, start by checking the input voltage, output voltage, and output current. Verify that the device is operating within its recommended operating conditions. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the device's switching waveforms and look for signs of instability or oscillation.
The HIP4080AIBZT is a high-performance, high-power device with a unique set of features, such as its high switching frequency and low quiescent current. Compared to other devices, it offers a higher power density and faster switching times. However, it may have different pinouts, package options, or thermal management requirements compared to other devices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP4080AIBZT Overview

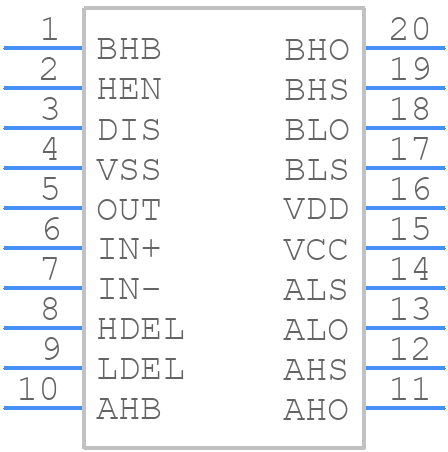

Use the download button to access the HIP4080AIBZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIP40,
or try a keyword search, such as MOSFET Drivers
