Description:The HIP4081A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4081A can drive every possible switch combination except those which would cause a shoot-through condition. The HIP4081A can switch at frequencies up to 1MHz and is well suited to driving Voice Coil Motors, high-frequency switching power amplifiers, and power supplies. For example, the HIP4081A can drive medium voltage brush motors, and two HIP4081As can be used to
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The HIP4081AIPZ package has an exposed thermal pad, which should be connected to a thermal plane on the PCB to dissipate heat efficiently.
Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal gradients. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
Use a shielded enclosure, keep the HIP4081AIPZ away from antennas and other EMI-sensitive components, and use EMI filters or common-mode chokes on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and coupling.
Use the device's built-in power-saving features, such as the low-power mode, and optimize the external component selection to minimize power consumption. Additionally, consider using a low-dropout regulator (LDO) to reduce power consumption.
Monitor the device's temperature, output voltage, and current to detect potential faults. Implement over-temperature protection (OTP), over-voltage protection (OVP), and over-current protection (OCP) to prevent damage to the device and the system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP4081AIPZ Overview

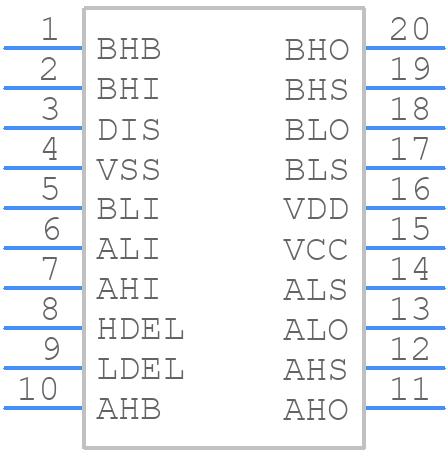

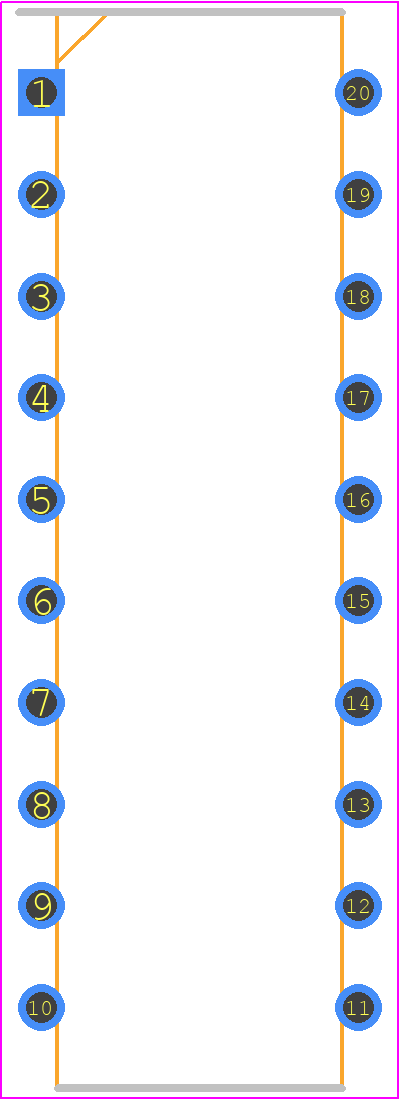

Use the download button to access the HIP4081AIPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIP40,
or try a keyword search, such as MOSFET Drivers
