HIP4086AABZT - Renesas Electronics

Description: The HIP4086 and HIP4086A (referred to as the HIP4086/A) are 3-phase N-channel MOSFET drivers. Both parts are specifically targeted for PWM motor control. These drivers have flexible input protocol for driving every possible switch combination. The user can even override the shoot-through protection for switched reluctance applications. The HIP4086/A have a wide range of programmable dead times (0. 5μs to 4. 5μs) which makes them very suitable for the low frequencies (up to 100kHz) typically used for motor d

Download HIP4086AABZT Model

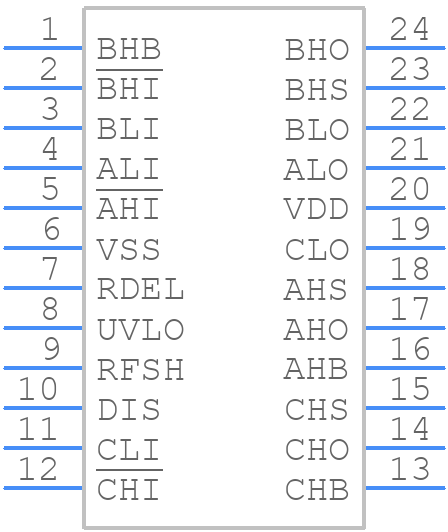

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HIP4086AABZT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 24 Ld SOIC (RoHS Compliant)
click to zoom
3D Models
HIP4086AABZT - Renesas Electronics  - 3D model - Small Outline Packages - 24 Ld SOIC (RoHS Compliant)
click to zoom

HIP4086AABZT Details

  • Manufacturer Part Number:

    HIP4086AABZT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Package Description:

    SOP, SOP24,.4

  • Pin Count:

    24

  • Manufacturer Package Code:

    M24.3

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    5.1 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    95 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.135 µs

  • Turn-on Time:

    0.158 µs

  • Width:

    7.5 mm
