HJ-19PFFR-QS7001 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

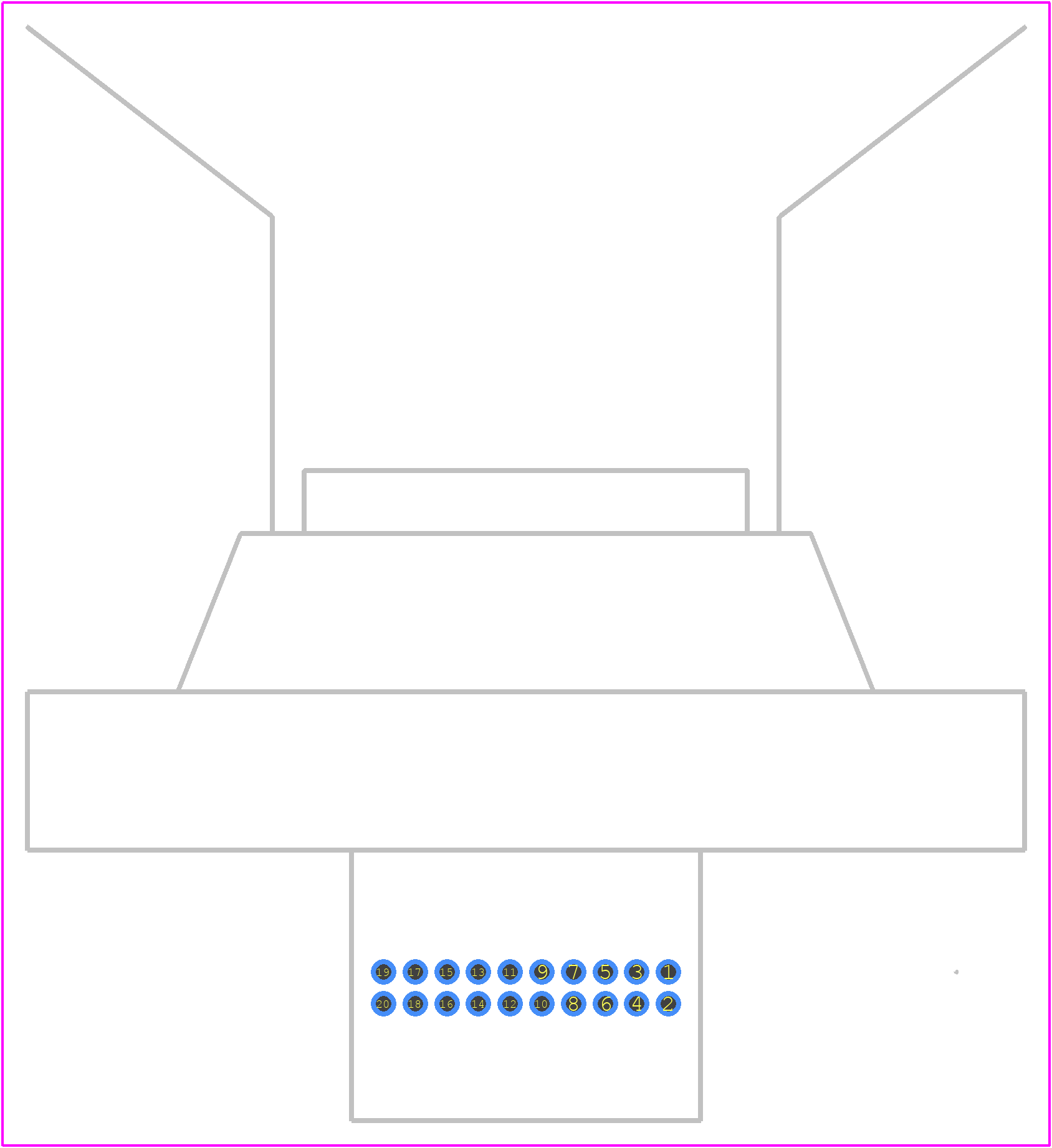

PCB Footprints

HJ-19PFFR-QS7001 - Amphenol PCB footprint - Other - Other - HJ-19PFFR-QS7001-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HJ-19PFFR-QS7001
Part Number HJ-19PFFR-QS7001
Manufacturer Amphenol
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - HJ-19PFFR-QS7001-3
Released Date Jul 11, 2026
Last Modified Date Jul 13, 2026 10:49 AM UTC
Pinout / Pin List Click Here (Member Only)

HJ-19PFFR-QS7001 Details

Manufacturer Part Number:
HJ-19PFFR-QS7001
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
4 Weeks
Manufacturer:
Amphenol Corporation
Body Breadth:
0.756 inch
Body Depth:
1.772 inch
Body Length:
1.575 inch
Body/Shell Style:
JACK
Connector Type:
DISPLAYPORT CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Style:
HDMI
Empty Shell:
NO
Filter Feature:
NO
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD AND PANEL
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
2
Option:
WATERPROOF
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
19

HJ-19PFFR-QS7001 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the HJ-19PFFR-QS7001 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
The HJ-19PFFR-QS7001 has a IP67 rating, which means it is protected against dust and water ingress. It can be used in outdoor or harsh environments, but it's essential to ensure proper sealing and protection of the connector to maintain its IP rating.
The HJ-19PFFR-QS7001 has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
The HJ-19PFFR-QS7001 is designed to be compatible with other Amphenol products, such as the QS7001 series. However, compatibility with third-party components should be verified through testing and validation to ensure reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

HJ-19PFFR-QS7001 Overview

Use the download button to access the HJ-19PFFR-QS7001 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HJ-19, or try a keyword search, such as Telecom and Datacom Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
