HJK-372H+ - Mini-Circuits

Description: Level 17 (LO Power +17 dBm) 420 to 3730 MHz

Download HJK-372H+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

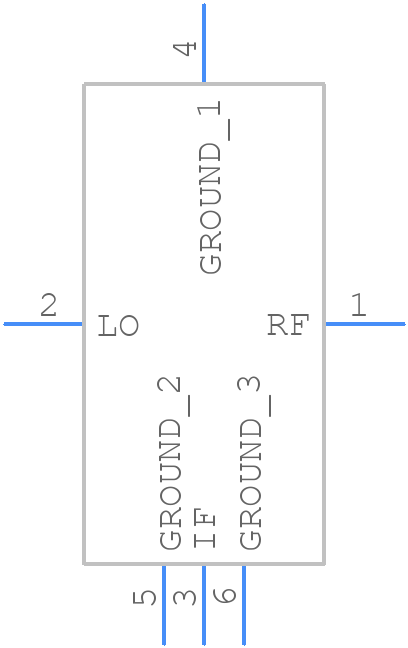

HJK-372H+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
HJK-372H+ - Mini-Circuits PCB footprint - Other - Other - TTT1114
click to zoom
3D Models
HJK-372H+ - Mini-Circuits - 3D model - Other - TTT1114
click to zoom

HJK-372H+ Details

  • Manufacturer Part Number:

    HJK-372H+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    TR, 7 INCH: 200

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    9.2 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3730 MHz

  • Operating Frequency-Min:

    420 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC6/8,.37X.5,175

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • VSWR-Max:

    4.41

HJK-372H+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. A low-inductance path to the ground plane is crucial for optimal performance.
  • The HJK-372H+ requires a bias voltage of 5V and a bias current of 120mA. Ensure the bias voltage is well-regulated and decoupled to prevent oscillations. A bias tee or a dedicated bias circuit is recommended.
  • The HJK-372H+ can handle up to +10dBm of input power without damage. Exceeding this limit may cause permanent damage to the amplifier.
  • Ensure the amplifier is properly biased, and the input and output are well-matched to 50 ohms. Use a low-pass filter or a ferrite bead to prevent high-frequency oscillations. A shielded enclosure can also help prevent electromagnetic interference.
  • The HJK-372H+ is designed to operate from -40°C to +85°C. Operating outside this range may affect the amplifier's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HJK-372H+ Overview

Use the download button to access the HJK-372H+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HJK-3, or try a keyword search, such as RF/Microwave Mixers
