HLMP-2550 - Avago Technologies

Description: HLMP-2550 Broadcom Light Bar LED Display, Green 50 mcd

Download HLMP-2550 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

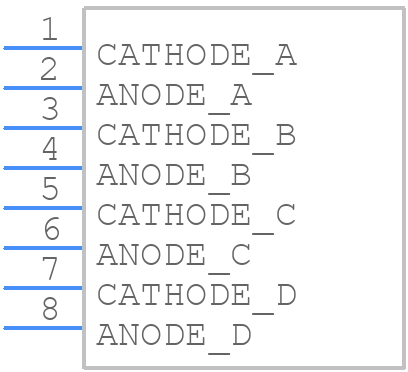

HLMP-2550 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HLMP-2550 - Avago Technologies PCB footprint - Other - Other - HLMP-2550-6
click to zoom
3D Models
HLMP-2550 - Avago Technologies - 3D model - Other - HLMP-2550-6
click to zoom

HLMP-2550 Details

  • Manufacturer Part Number:

    HLMP-2550

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Color:

    HIGH PERFORMANCE GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Luminous Intensity-Min:

    0.0075 cd

  • Luminous Intensity-Nom:

    50 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    6.223 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    19.05 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm
