The recommended operating temperature range for the HLMP-2720 is -40°C to 85°C.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes thermal stress on the component.
The maximum current rating for the HLMP-2720 is 30mA per channel.
To prevent electrostatic discharge (ESD) damage, handle the HLMP-2720 by the body or pins, and use an ESD wrist strap or mat when handling the component. Store the component in an ESD-protected environment.
Store the HLMP-2720 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, and the relative humidity should be below 60%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HLMP-2720 Overview

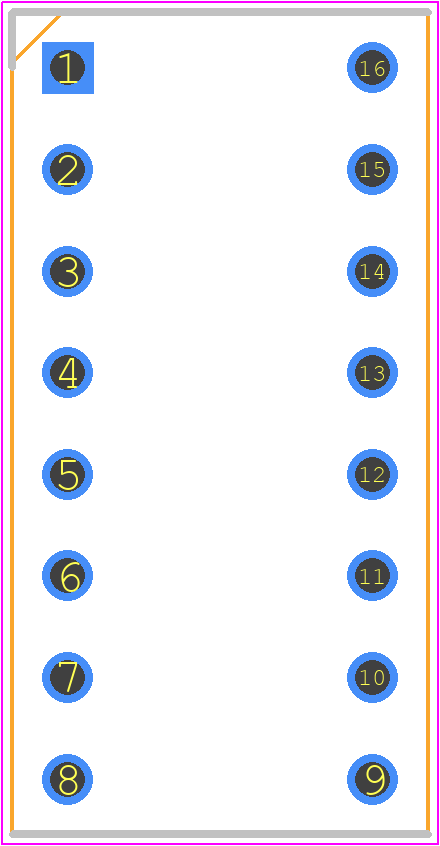

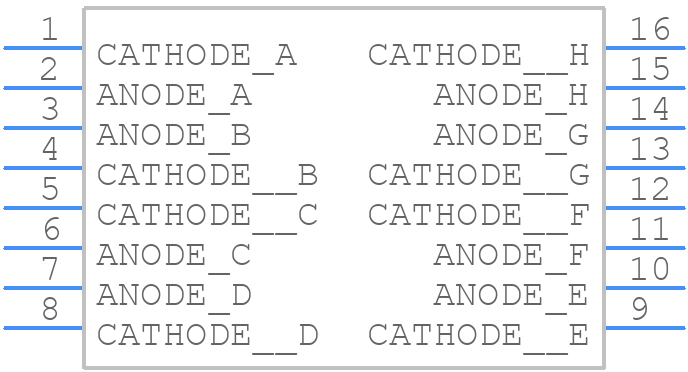

Use the download button to access the HLMP-2720 schematic symbol and PCB footprint.
