HLMP-2785 - Avago Technologies

Description: BROADCOM - HLMP-2785 - LED Bar Graph Array, Yellow, 20 mA, 2.1 V, 70 mcd, 8 LEDs, 8.89mm x 19.05mm

Download HLMP-2785 Model

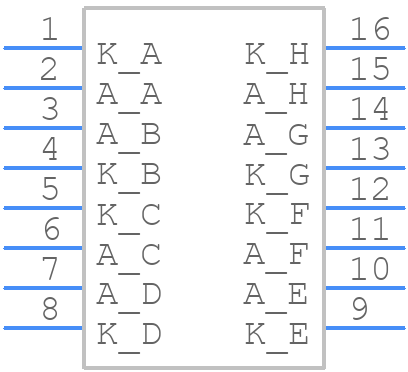

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

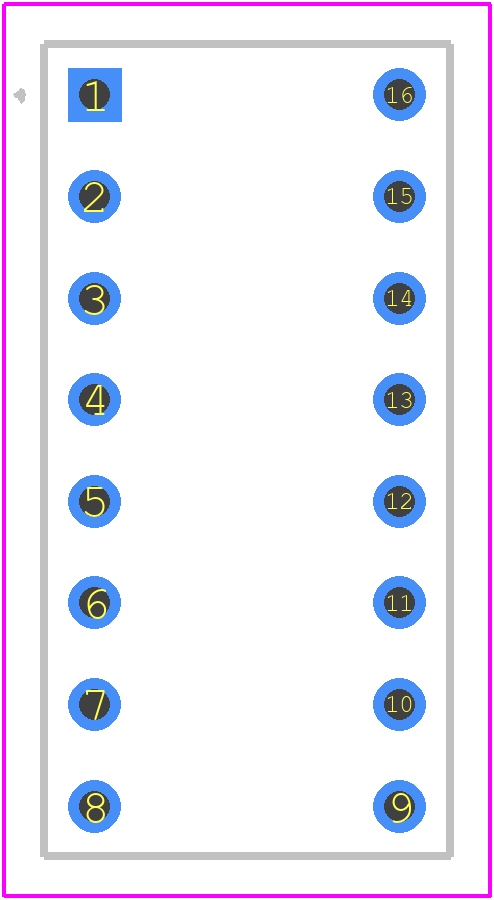

PCB Footprints
HLMP-2785 - Avago Technologies PCB footprint - Other - Other - HLMP-2785-3
click to zoom
3D Models
HLMP-2785 - Avago Technologies  - 3D model - Other - HLMP-2785-3
click to zoom

HLMP-2785 Details

  • Manufacturer Part Number:

    HLMP-2785

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Luminous Intensity-Min:

    0.017 cd

  • Luminous Intensity-Nom:

    70 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    6.223 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    583 nm

  • Shape:

    RECTANGULAR

  • Size:

    19.05 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm

HLMP-2785 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component side of the PCB clear of copper to minimize thermal resistance.
  • Ensure proper thermal design, use a suitable heat sink if necessary, and follow the recommended PCB layout guidelines. Also, ensure that the input voltage and current are within the specified limits.
  • The maximum allowable voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the HLMP-2785 can be used in a dimming application. However, the dimming frequency should be limited to 200 Hz or less to avoid affecting the device's performance.
  • The output current can be calculated using the formula: Iout = (VIN - Vf) / (Rset x Rext), where VIN is the input voltage, Vf is the forward voltage drop of the LED, Rset is the internal sense resistor, and Rext is the external sense resistor.
