HLMP-2885 - Avago Technologies

Description: BROADCOM - HLMP-2885 - LED Bar Graph Array, Green, 20 mA, 2.2 V, 100 mcd, 8 LEDs, 8.89mm x 19.05mm

Download HLMP-2885 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

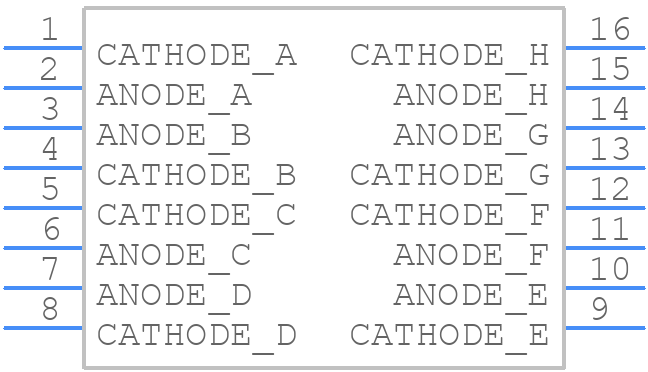

HLMP-2885 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

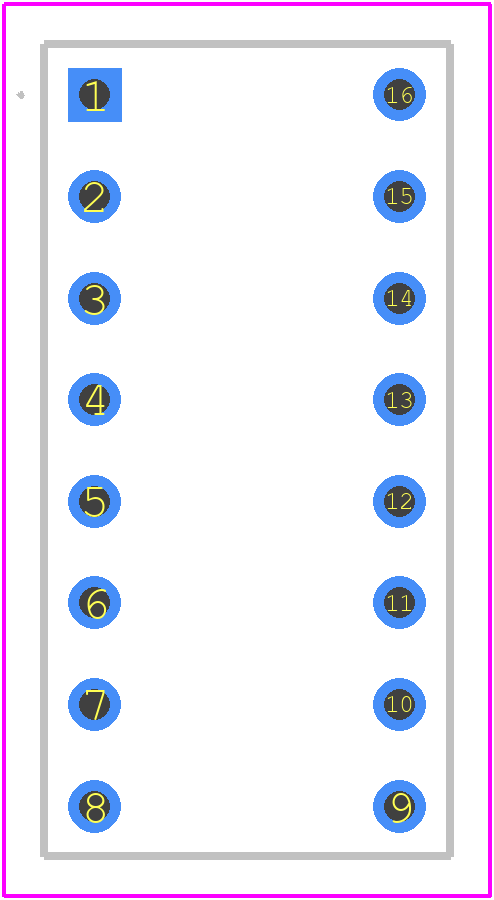

HLMP-2885 - Avago Technologies PCB footprint - Other - Other - HLMP-2885-5
click to zoom
3D Models
HLMP-2885 - Avago Technologies - 3D model - Other - HLMP-2885-5
click to zoom

HLMP-2885 Details

  • Manufacturer Part Number:

    HLMP-2885

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Color:

    HIGH PERFORMANCE GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Luminous Intensity-Min:

    0.015 cd

  • Luminous Intensity-Nom:

    100 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    6.223 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    19.05 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm
