HLMP-2965 - Avago Technologies

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Green, Red 2.2V Green, 2V Red 30mA Square with Flat Top 8.89mm Through Hole

Download HLMP-2965 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

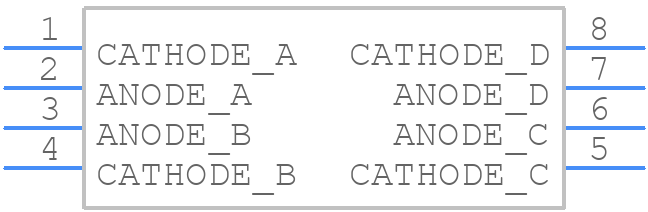

HLMP-2965 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HLMP-2965 - Avago Technologies PCB footprint - Other - Other - HLMP-2965-4
click to zoom
3D Models
HLMP-2965 - Avago Technologies - 3D model - Other - HLMP-2965-4
click to zoom

HLMP-2965 Details

  • Manufacturer Part Number:

    HLMP-2965

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Color:

    HIGH EFFICIENCY RED/HIGH PERFORMANCE GREEN

  • Color@Wavelength:

    Green/Red

  • Configuration:

    4 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e1

  • Luminous Intensity-Min:

    0.019 cd

  • Luminous Intensity-Nom:

    45/50 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    6.223 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    635/565 nm

  • Shape:

    SQUARE

  • Size:

    8.89 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm

HLMP-2965 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HLMP-2965 is -40°C to 85°C.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes thermal stress on the component.
  • The maximum current rating for the HLMP-2965 is 30mA per channel.
  • To prevent ESD damage, handle the HLMP-2965 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or leads.
  • While the HLMP-2965 is designed to operate in a variety of environments, it's recommended to use it in environments with a relative humidity of 60% or less to prevent moisture-related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HLMP-2965 Overview

Use the download button to access the HLMP-2965 schematic symbol, PCB footprint, and 3D model.
