- Part Number HLSR100-P/SP10
- Manufacturer LEM
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - HLSR100-P/SP10-3
- Released Date May 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HLSR100-P/SP10 Details
-
Manufacturer Part Number:
HLSR100-P/SP10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China, Switzerland
-
Manufacturer:
LEM Holdings SSA
-
Sensors/Transducers Type:
CURRENT SENSOR
HLSR100-P/SP10 Frequently Asked Questions (FAQs)
-
The recommended PCB layout involves placing the device on a multi-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
-
The HLSR100-P/SP10 has built-in overcurrent and overvoltage protection. In case of an overcurrent condition, the device will limit the current to prevent damage. In case of an overvoltage condition, the device will shut down to prevent damage.
-
The recommended calibration procedure involves applying a known current or voltage to the device and adjusting the output to match the expected value. The device should be calibrated in a controlled environment with minimal noise and interference.
-
The HLSR100-P/SP10 has built-in EMI and RFI filters to minimize the impact of electromagnetic interference and radio-frequency interference. Additionally, proper PCB layout and shielding can help to further reduce the impact of EMI and RFI.
-
The typical response time of the HLSR100-P/SP10 is in the range of microseconds, depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HLSR100-P/SP10 Overview

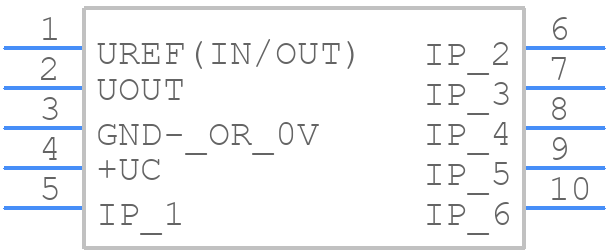

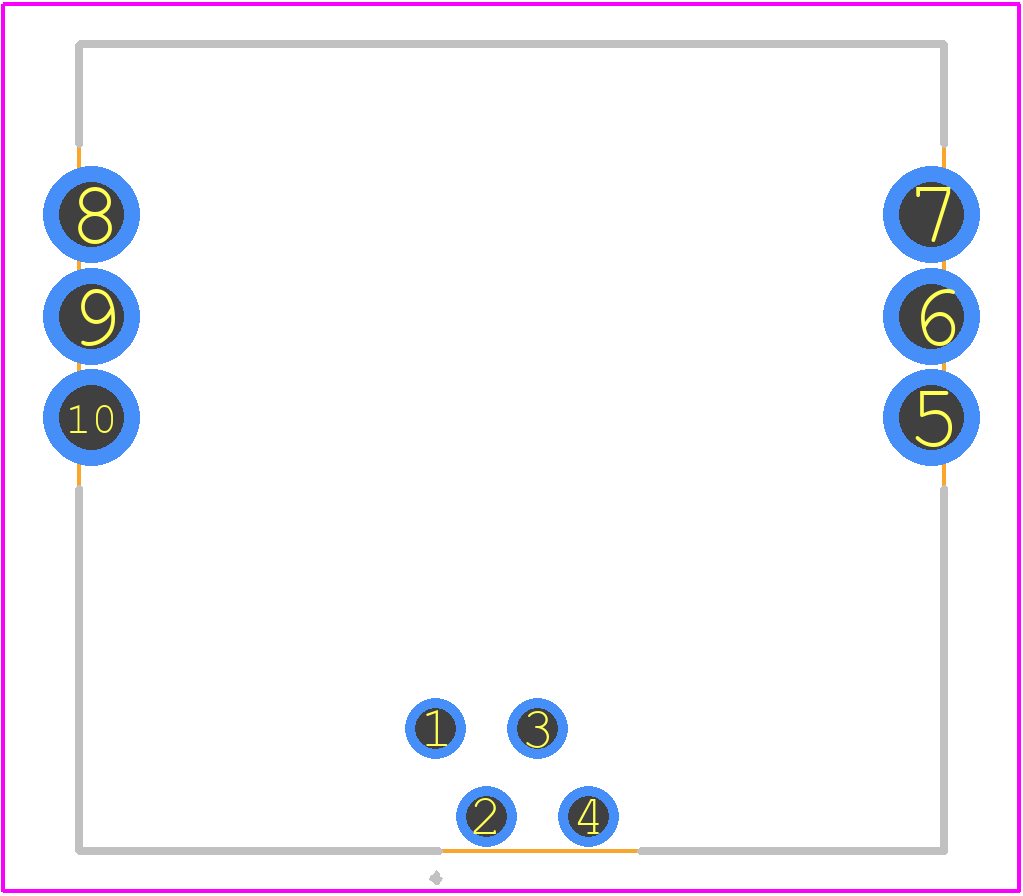

Use the download button to access the HLSR100-P/SP10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HLSR1,
or try a keyword search, such as Other Sensors/Transducers
