The recommended PCB layout for the HLSR50-P involves keeping the current path as short as possible, using a solid ground plane, and placing the device close to the current source. Additionally, it's essential to ensure good thermal management by providing adequate heat sinking and airflow.
The HLSR50-P has an internal overcurrent protection mechanism that limits the output current to prevent damage in case of an overload. However, it's still essential to implement external overcurrent protection, such as fuses or circuit breakers, to ensure the safety of the system and prevent damage to the device.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 100°C for optimal performance.
Yes, the HLSR50-P is designed to withstand high-vibration environments, but it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, it's recommended to follow the manufacturer's guidelines for vibration testing and validation.
The HLSR50-P has internal EMI filtering, but it's still essential to implement external EMI shielding and filtering measures, such as shielding enclosures and EMI filters, to ensure the device's performance and accuracy in noisy environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HLSR50-P Overview

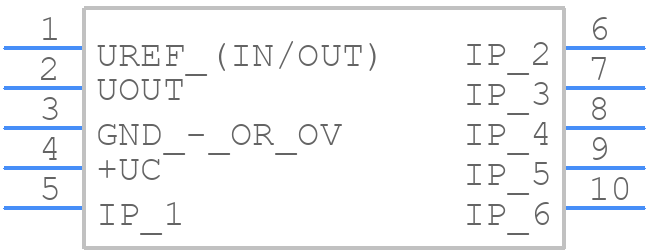

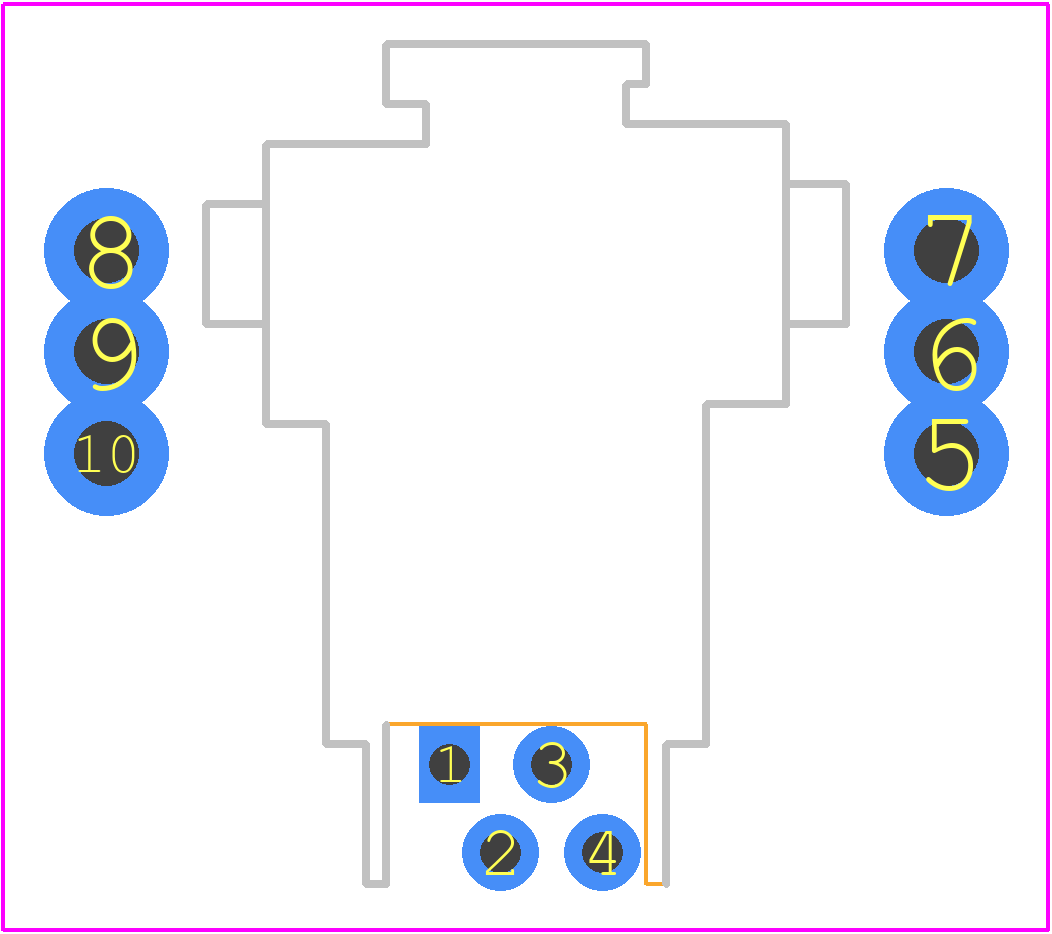

Use the download button to access the HLSR50-P schematic symbol and PCB footprint.
