HM12-1A83-150 - Meder

Description: Reed Relays high volt reed relay A-NO 50W 3V 12VDC

Download HM12-1A83-150 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HM12-1A83-150 model

Email notifications will be applied after download.

Send part feedback

Symbol

HM12-1A83-150 - Meder - PCB symbol

PCB Footprints

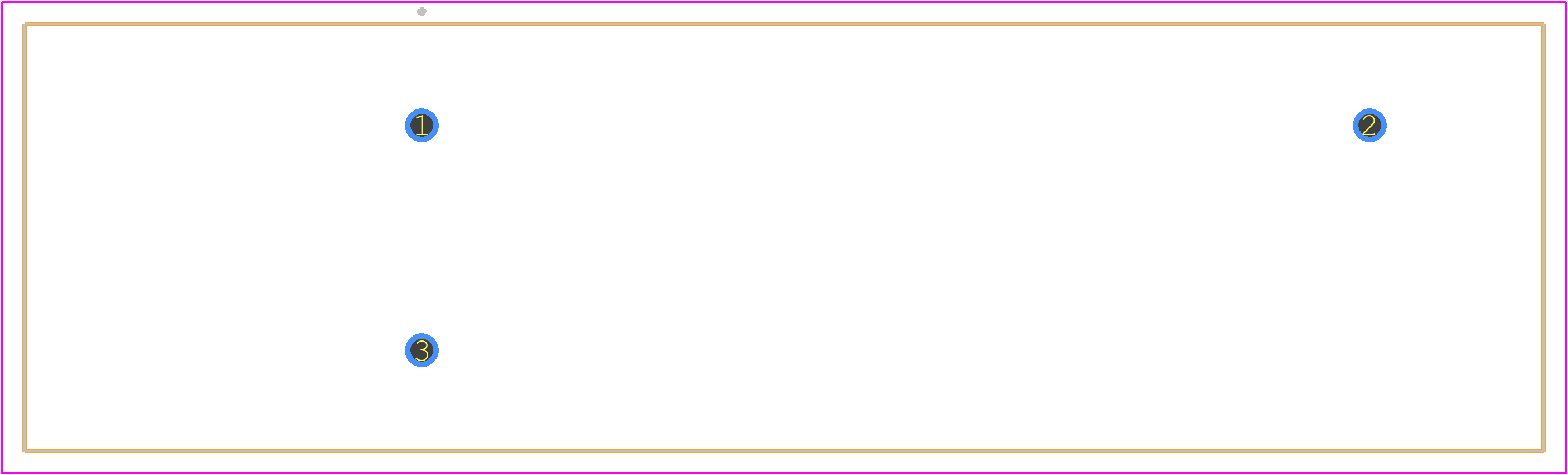

HM12-1A83-150 - Meder PCB footprint - Other - Other - HM12-1A83-150-4

3D Models

HM12-1A83-150 - Meder - 3D model - Other - HM12-1A83-150-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for HM12-1A83-150
Part Number HM12-1A83-150
Manufacturer Meder
Pin Count 3
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HM12-1A83-150-4
Released Date Jan 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HM12-1A83-150 Details

Manufacturer Part Number:
HM12-1A83-150
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Germany
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Standex-Meder Electronics
YTEOL:
9.1
Relay Type:
DRY REED RELAY
