The recommended mounting orientation is with the terminals facing downwards to prevent moisture from entering the switch.
Yes, the HM12-1B69-06 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and sealing.
The HM12-1B69-06 has a epoxy seal, but it's recommended to add additional sealing measures such as conformal coating, potting, or encapsulation to ensure reliable operation in humid or wet environments.
The maximum operating frequency of the HM12-1B69-06 is not explicitly stated in the datasheet, but it's generally recommended to operate reed switches at frequencies below 100 Hz to ensure reliable operation.
The HM12-1B69-06 has an operating temperature range of -40°C to 125°C, but it's recommended to derate the switch's performance at high temperatures and to ensure proper thermal management to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HM12-1B69-06 Overview

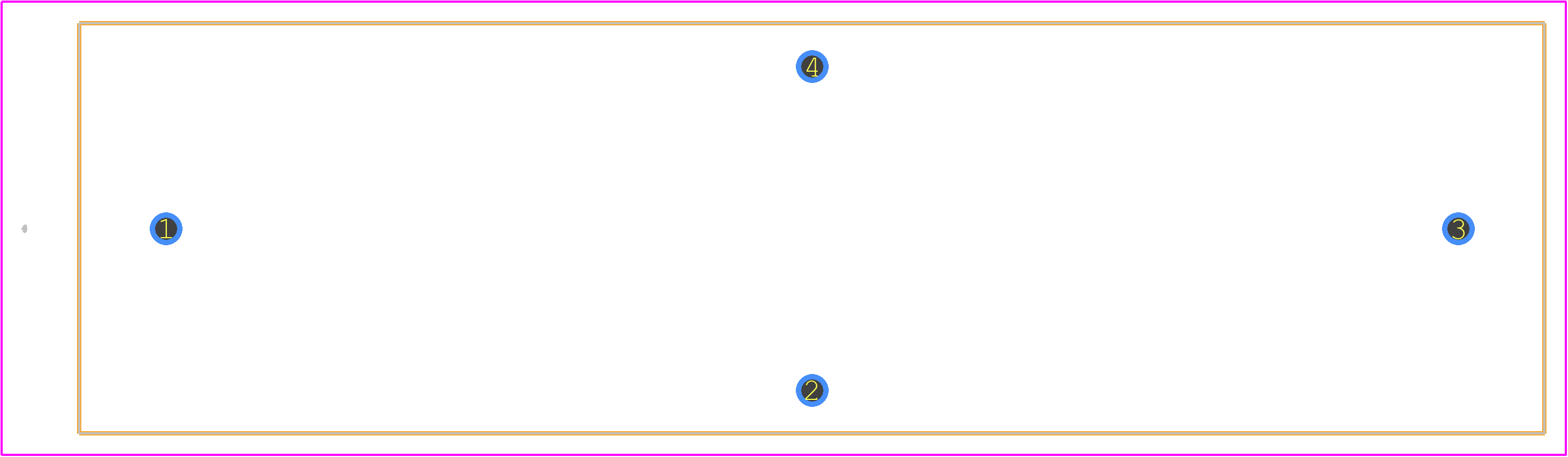

Use the download button to access the HM12-1B69-06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HM12-,
or try a keyword search, such as Reed Relays
