The recommended PCB layout and land pattern can be found in the Standex-Meder Electronics' application note AN-105, which provides detailed guidelines for proper PCB design and assembly.
To ensure reliable switching performance in harsh environments, it's essential to follow proper mounting and soldering techniques, and consider using additional mechanical support or potting the relay. Consult the datasheet and application notes for more information.
The maximum allowable voltage across the relay's coil during switching is typically 1.5 times the nominal coil voltage. However, it's recommended to consult the datasheet and application notes for specific guidance on voltage derating and switching transients.
The HM12-1B69-150 is rated for operation up to 85°C (185°F). For higher temperature applications, consider using a relay with a higher temperature rating, such as the HM12-1B69-150-HT, which is rated up to 125°C (257°F).
The relay's switching lifetime and expected number of operations depend on various factors, including the load, switching frequency, and environmental conditions. Consult the datasheet and application notes for guidance on estimating the relay's lifetime and planning for maintenance and replacement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HM12-1B69-150 Overview

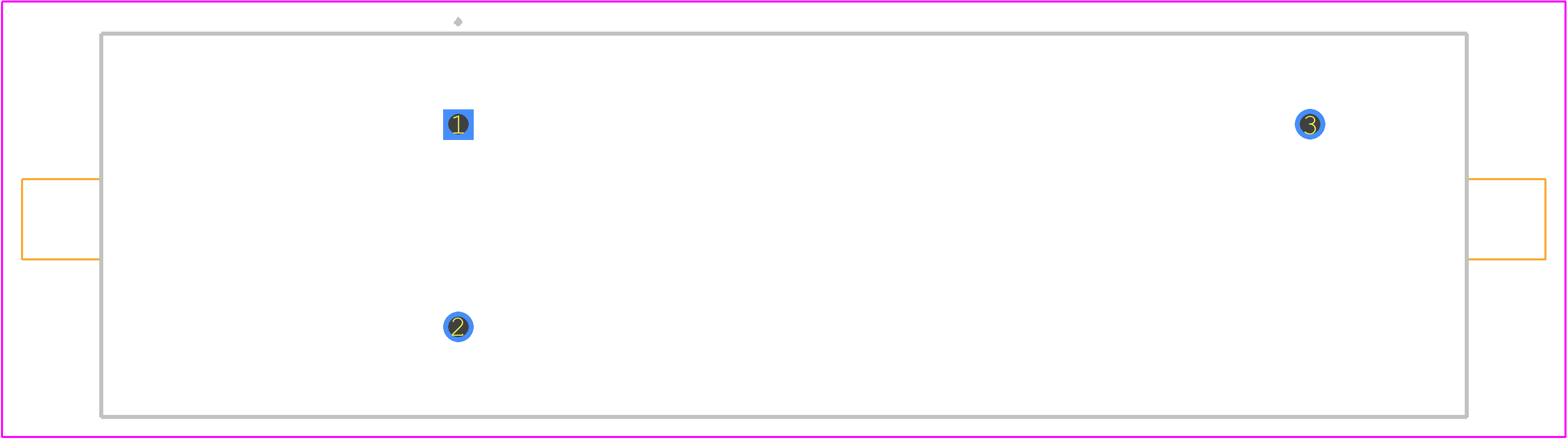

Use the download button to access the HM12-1B69-150 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HM12-,
or try a keyword search, such as Reed Relays
