HM24-1A83-03 - Meder

Description: Dry Reed Relay, 1 Form A, SPST, MBB, 0.024A (Coil), 30VDC (Coil), 575mW (Coil), 3A (Contact), 7500VDC (Contact), DC Input, Random, AC/DC Output

Download HM24-1A83-03 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HM24-1A83-03 model

Email notifications will be applied after download.

Send part feedback

Symbol

HM24-1A83-03 - Meder - PCB symbol

PCB Footprints

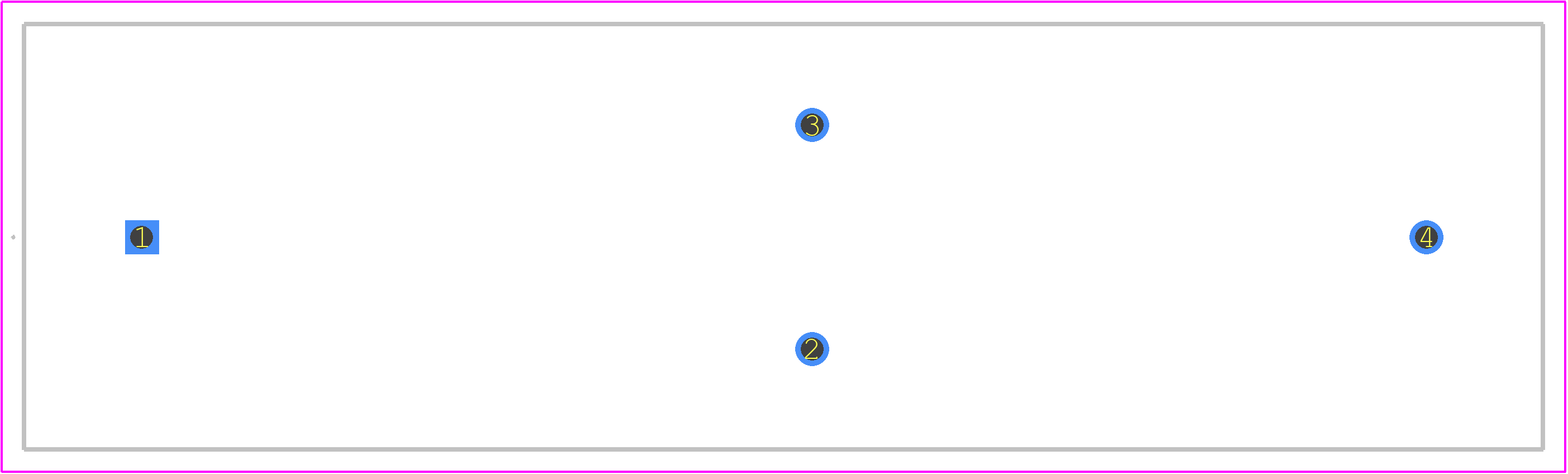

HM24-1A83-03 - Meder PCB footprint - Other - Other - HM24-1A83-03-1

3D Models

HM24-1A83-03 - Meder - 3D model - Other - HM24-1A83-03-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for HM24-1A83-03
Part Number HM24-1A83-03
Manufacturer Meder
Pin Count 4
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HM24-1A83-03-1
Released Date Feb 5, 2026
Last Modified Date Feb 5, 2026 8:51 AM UTC
Pinout / Pin List Click Here (Member Only)

HM24-1A83-03 Details

Manufacturer Part Number:
HM24-1A83-03
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Germany
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Standex-Meder Electronics
YTEOL:
9
Relay Type:
DRY REED RELAY
