HM24-1B69-02 - Meder

HM24-1B69-02 Details

• Manufacturer Part Number:

  HM24-1B69-02

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Country Of Origin:

  Germany

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Standex-Meder Electronics

• YTEOL:

  9

• Body Breadth:

  19 mm

• Body Height:

  19.8 mm

• Body Length or Diameter:

  68 mm

• Coil Current(DC)-Max:

  0.024 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  576 mW

• Coil Release Voltage(DC):

  2 V

• Coil Resistance:

  1000 Ω

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  3A@10000VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Rating R Load:

  3A@10000VDC

• Contact Resistance:

  150 mΩ

• Contact Voltage(AC)-Max:

  10000 V

• Contact Voltage(DC)-Max:

  10000 V

• Contact/Output Supply Type:

  AC/DC

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000000 Ω

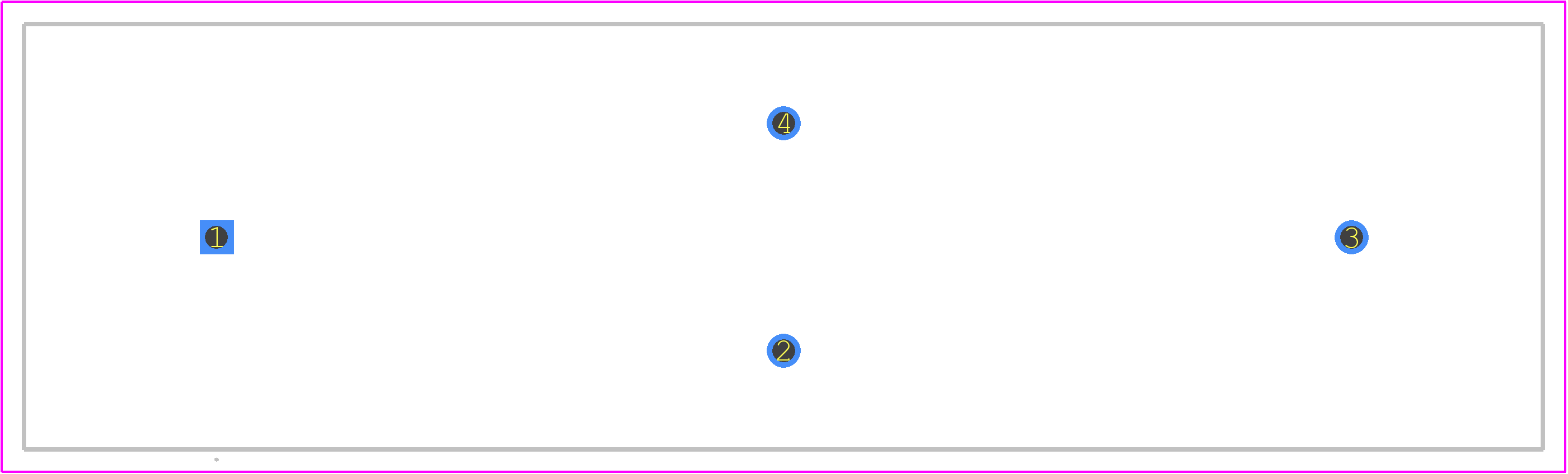

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  3 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• Physical Dimension:

  68mm x 19mm x 19.8mm

• Relay Action:

  MBB

• Relay Form:

  1 FORM B

• Relay Function:

  SPST

• Relay Type:

  DRY REED RELAY

• Release Time:

  1.5 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003200406400812802 inch

• Termination Type:

  SOLDER
