HM24-1B69-06 - STANDEXMEDER

Description: Reed Relay 24VDC 1KOhm 3A SPST-NC( (68mm 19mm 19.8mm)) THT Dry

Download HM24-1B69-06 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HM24-1B69-06 model

Email notifications will be applied after download.

Send part feedback

Symbol

HM24-1B69-06 - STANDEXMEDER - PCB symbol

PCB Footprints

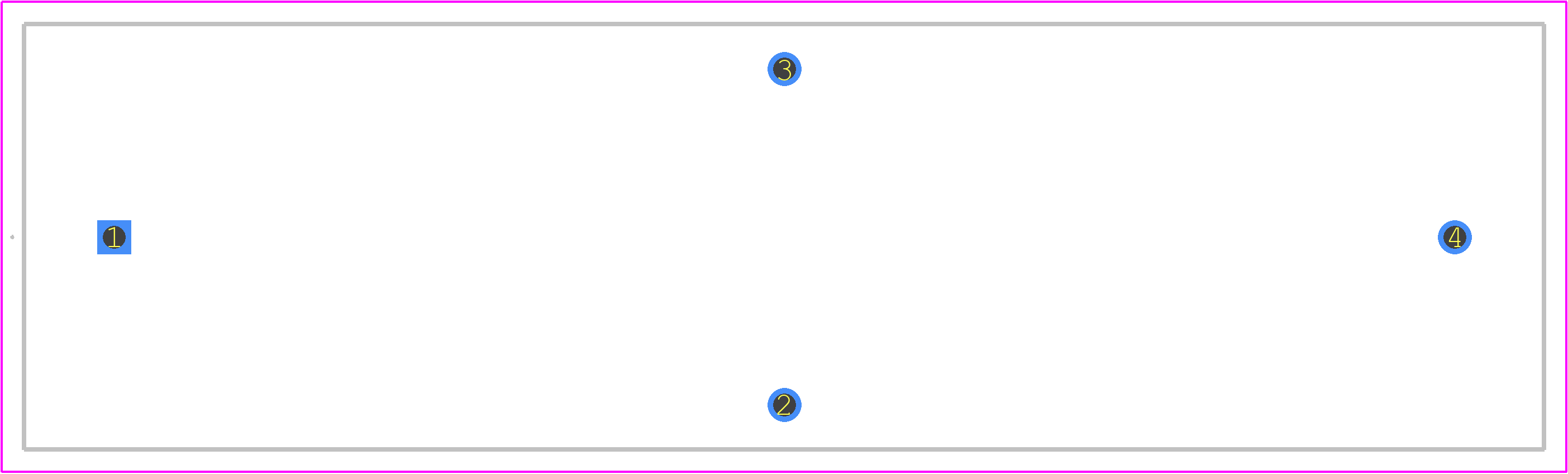

HM24-1B69-06 - STANDEXMEDER PCB footprint - Other - Other - HM24-1B69-06-3

3D Models

HM24-1B69-06 - STANDEXMEDER - 3D model - Other - HM24-1B69-06-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for HM24-1B69-06
Part Number HM24-1B69-06
Manufacturer STANDEXMEDER
Pin Count 4
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HM24-1B69-06-3
Released Date Sep 26, 2023
Last Modified Date Sep 27, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

HM24-1B69-06 Details

Manufacturer Part Number:
HM24-1B69-06
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Germany
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Standex-Meder Electronics
YTEOL:
9
Relay Type:
DRY REED RELAY

Trust Checks

Community Provided

System Verified

Community Approved

HM24-1B69-06 Overview

Use the download button to access the HM24-1B69-06 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HM24-, or try a keyword search, such as Reed Relays
