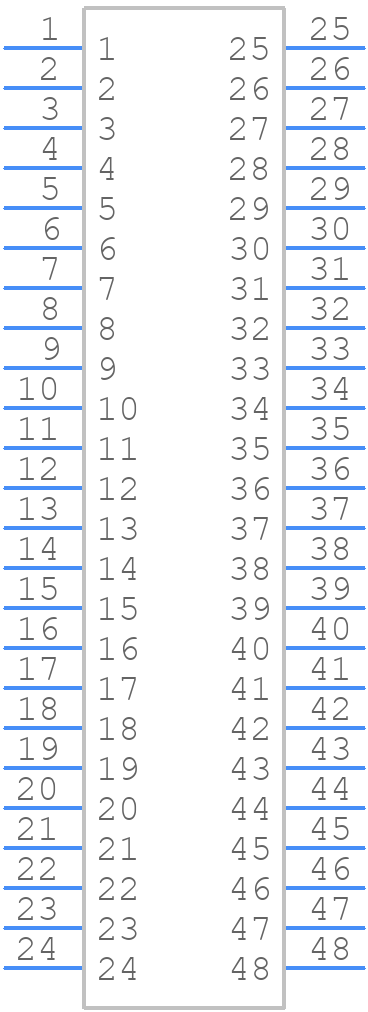

HM2R78PA5108N9LF footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

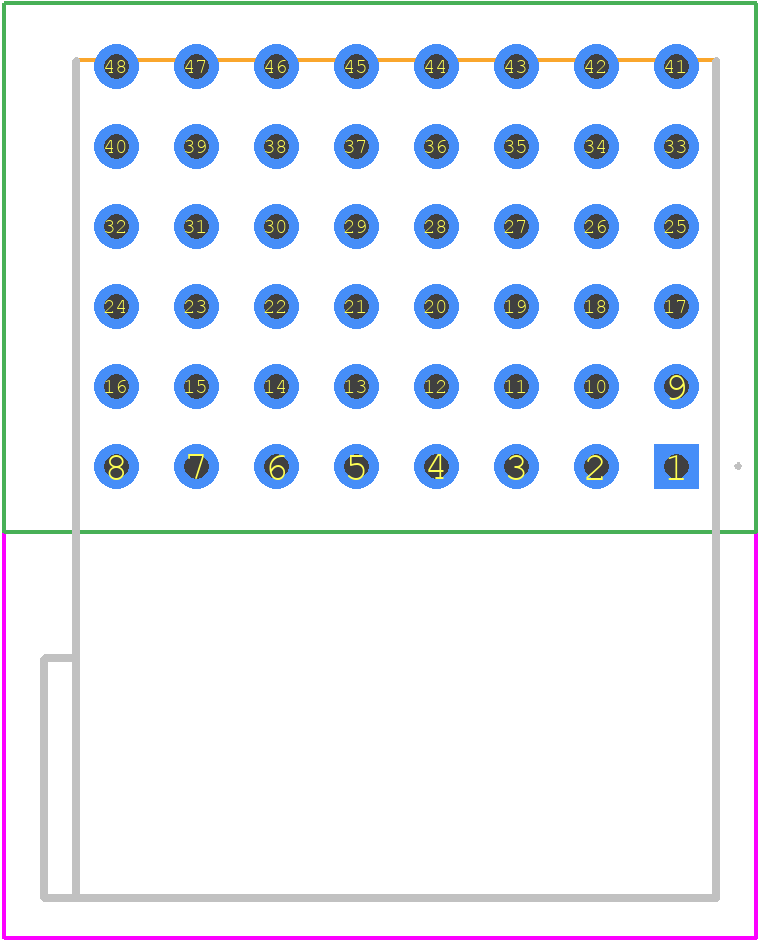

HM2R78PA5108N9LF - Amphenol PCB footprint - Other - Other - HM2R78PA5108N9LF-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HM2R78PA5108N9LF
Part Number HM2R78PA5108N9LF
Manufacturer Amphenol
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - HM2R78PA5108N9LF-2
Released Date Jun 20, 2025
Last Modified Date Jul 3, 2025 5:01 AM UTC
Pinout / Pin List Click Here (Member Only)

HM2R78PA5108N9LF Details

Manufacturer Part Number:
HM2R78PA5108N9LF
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LOW HALOGEN FREE, ROHS AND REACH COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Amphenol Corporation
YTEOL:
8
Additional Feature:
GROUND SHIELD CONTACTS: 8 ALSO AVAILABLE
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
5
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
40

HM2R78PA5108N9LF Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the HM2R78PA5108N9LF is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 2-2000 Hz.
Yes, the HM2R78PA5108N9LF is suitable for outdoor use. It has a rating of IP67, which means it can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes and is also protected against dust and other environmental factors.
The maximum operating temperature of the HM2R78PA5108N9LF is 125°C (257°F). It's essential to ensure that the connector does not exceed this temperature to maintain its reliability and performance.
It's not recommended to use the HM2R78PA5108N9LF with a different wire gauge than specified. The connector is designed to work with wire gauges of 24-20 AWG, and using a different gauge may affect the connector's performance and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HM2R78PA5108N9LF Overview

Use the download button to access the HM2R78PA5108N9LF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HM2R7, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
