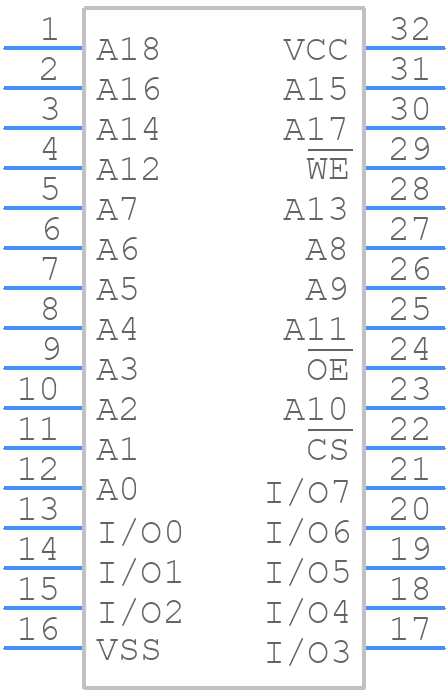

HM628512CLP-5 - HITACHI

HM628512CLP-5 Details

• Manufacturer Part Number:

  HM628512CLP-5

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  DIP

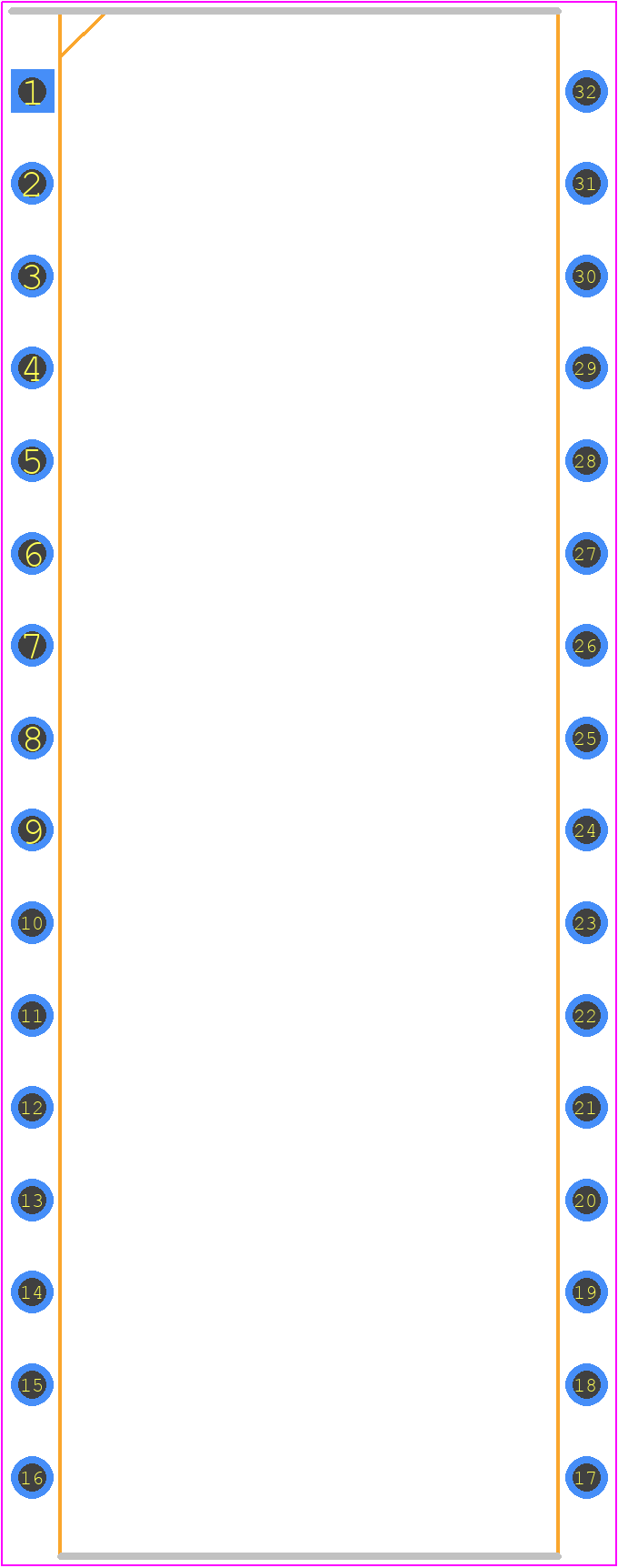

• Package Description:

  0.600 INCH, PLASTIC, DIP-32

• Pin Count:

  32

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Hitachi Ltd

• Access Time-Max:

  55 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e0

• Length:

  41.9 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• Organization:

  512KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Standby Current-Max:

  0.00002 A

• Standby Voltage-Min:

  2 V

• Supply Current-Max:

  0.025 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
