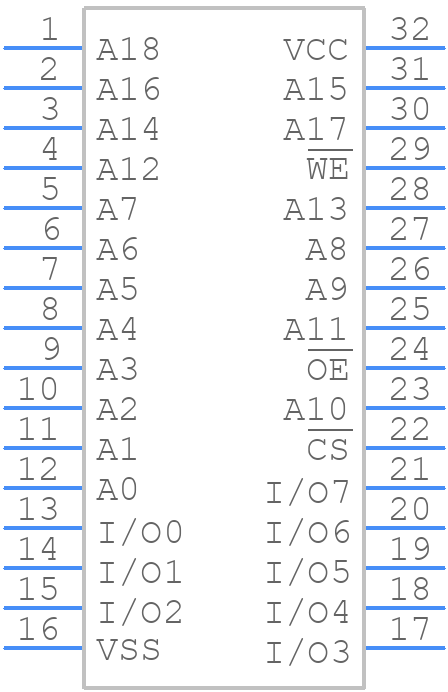

HM628512LFP-7 - HITACHI

HM628512LFP-7 Details

• Manufacturer Part Number:

  HM628512LFP-7

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

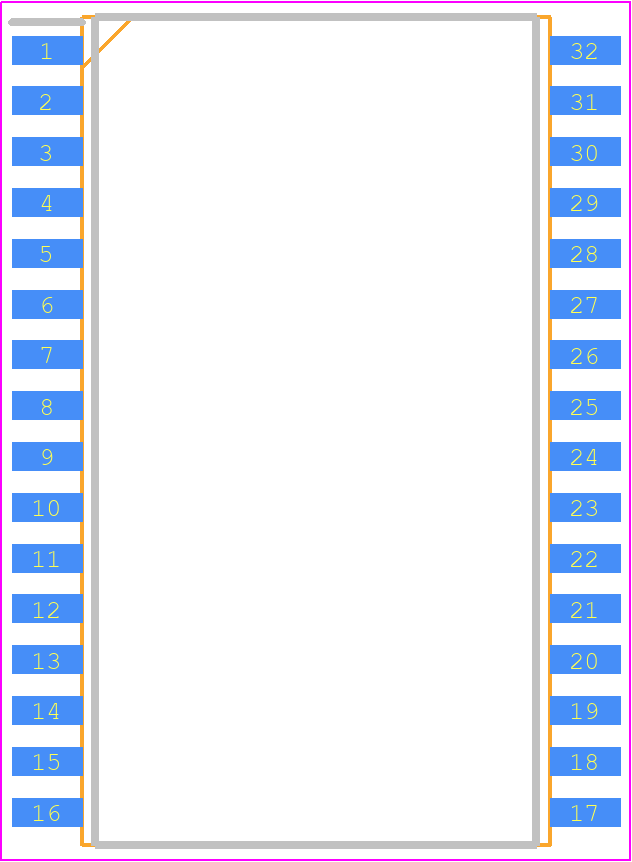

• Package Description:

  0.525 INCH, PLASTIC, SOP-32

• Pin Count:

  32

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Hitachi Ltd

• YTEOL:

  0

• Access Time-Max:

  70 ns

• Additional Feature:

  BATTERY BACK-UP OPERATION

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-G32

• JESD-609 Code:

  e0

• Length:

  20.45 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  512KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP32,.56

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3 mm

• Standby Current-Max:

  0.00005 A

• Standby Voltage-Min:

  2 V

• Supply Current-Max:

  0.09 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL
