HMC1018ALP4E - Analog Devices

Description: Attenuators Attenuators

Download HMC1018ALP4E Model

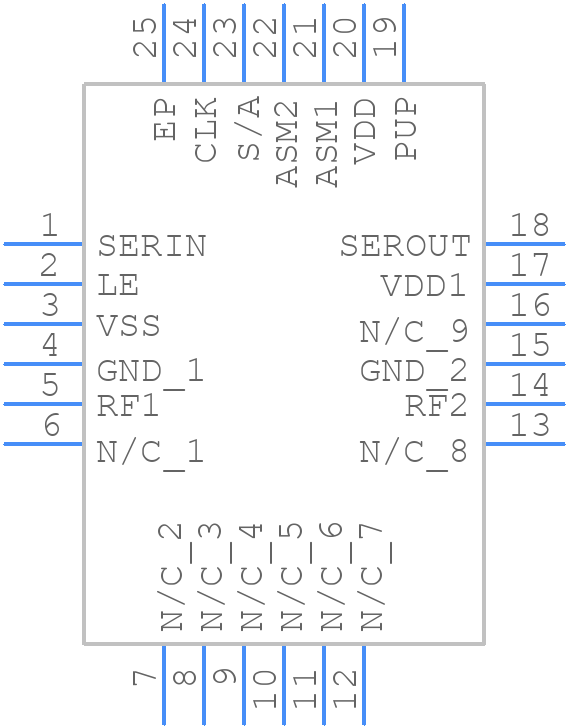

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC1018ALP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1018ALP4E
click to zoom
3D Models
HMC1018ALP4E - Analog Devices  - 3D model - Quad Flat No-Lead - HMC1018ALP4E
click to zoom

HMC1018ALP4E Details

  • Manufacturer Part Number:

    HMC1018ALP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-11-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    8 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    30000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    6.5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.67

HMC1018ALP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1018ALP4E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias voltage is 2.5V.
  • The HMC1018ALP4E can operate up to 18 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise power supply, keeping the signal traces short, and using a good quality PCB material with low dielectric loss.
  • The recommended input and output impedance is 50 ohms. Ensure the input and output are properly matched to minimize reflections and ensure optimal performance.
