HMC1019ALP4ETR - Analog Devices

Description: 0.5 dB LSB GaAs MMIC 5-BIT DIGITAL ATTENUATOR, 0.1 - 30 GHz,-40 to +85 °C

Download HMC1019ALP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

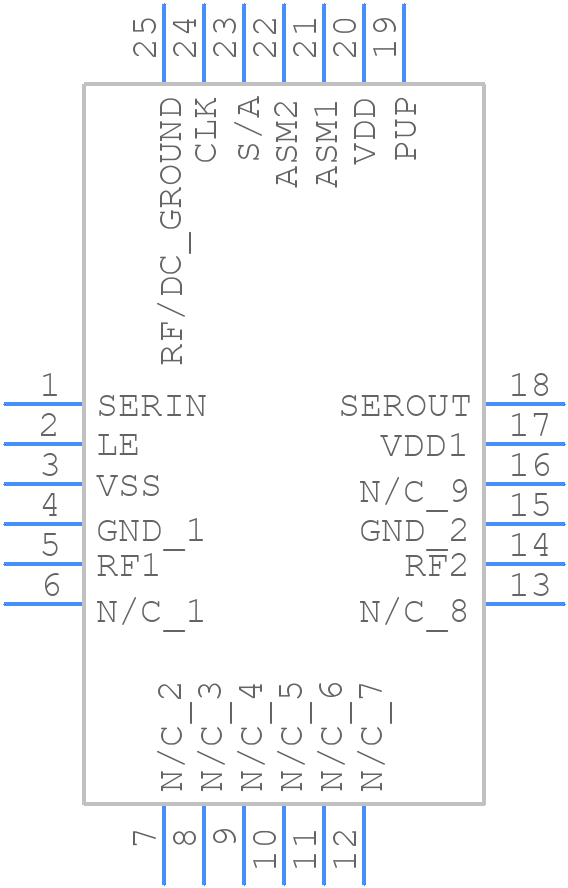

Symbol
HMC1019ALP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1019ALP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1
click to zoom

HMC1019ALP4ETR Details

  • Manufacturer Part Number:

    HMC1019ALP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Matte Tin (Sn)

HMC1019ALP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC1019ALP4ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The bias voltage should be set to 2.5V for optimal performance.
  • The HMC1019ALP4ETR is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Check the power supply voltage and ensure it is within the recommended range. Verify the input signals are within the specified range. Check for noise and interference on the input signals. Use an oscilloscope to verify the output signal integrity.
  • The HMC1019ALP4ETR is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Consult with Analog Devices Inc for availability of radiation-hardened or high-reliability versions of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1019ALP4ETR Overview

Use the download button to access the HMC1019ALP4ETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Attenuators
