HMC1032LP6GE - Analog Devices

Description: Clock Generator with Fractional-N PLL & Integrated VCO SMT, 125 - 350 MHz

Download HMC1032LP6GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

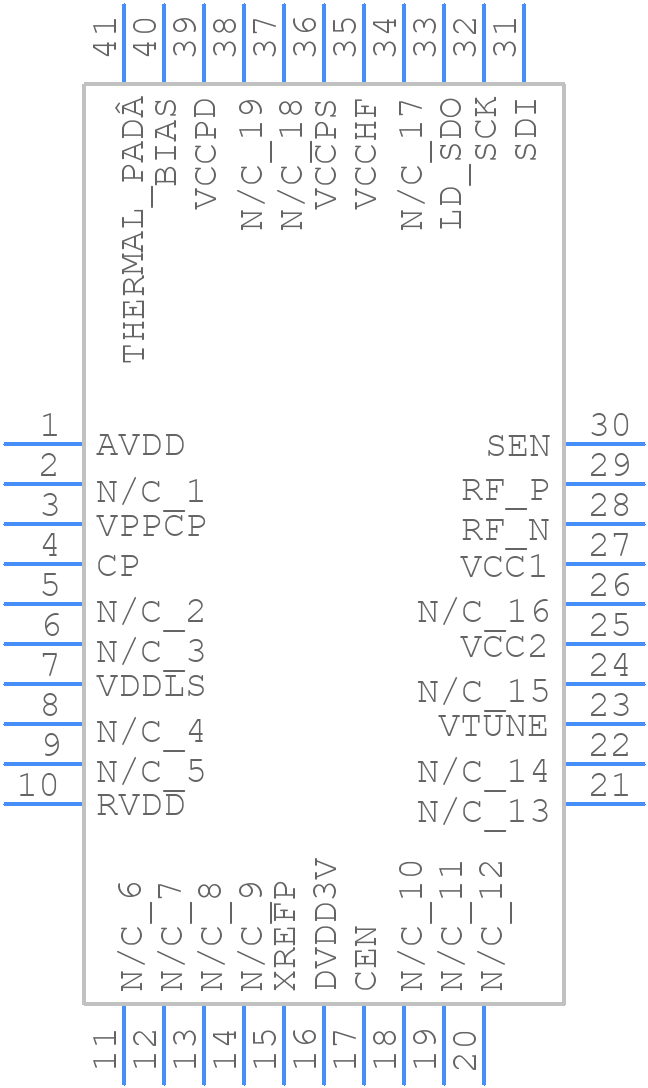

Symbol
HMC1032LP6GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1032LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC836LP6CETR_2023
click to zoom
3D Models
HMC1032LP6GE - Analog Devices - 3D model - Quad Flat No-Lead - HMC836LP6CETR_2023
click to zoom

HMC1032LP6GE Details

  • Manufacturer Part Number:

    HMC1032LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 5 V SUPPLY

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

HMC1032LP6GE Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1032LP6GE involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip transmission line to connect the device to the antenna.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The device requires a single 5V supply, and the VCC pin should be decoupled with a 10nF capacitor to ground. Additionally, the EN pin should be tied to VCC or a digital signal to enable the device.
  • The HMC1032LP6GE can handle up to 30dBm of input power, but it's recommended to operate the device at a maximum of 20dBm to ensure reliable performance and prevent damage.
  • Common issues with the HMC1032LP6GE can often be attributed to poor PCB layout, incorrect biasing, or inadequate decoupling. Check the PCB layout for any signal integrity issues, ensure proper biasing and decoupling, and verify that the device is properly terminated. If issues persist, consult the datasheet or contact Analog Devices support for further assistance.
  • Yes, the HMC1032LP6GE can be used in a switching application, but it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the switching frequency is within the device's specified range. Additionally, the device's power handling capability should be taken into account to prevent damage.
