HMC1034LP6GETR - Analog Devices

Description: Clock Generator with Fractional-N PLL & Integrated VCO SMT, 125 - 3000 MHz

Download HMC1034LP6GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

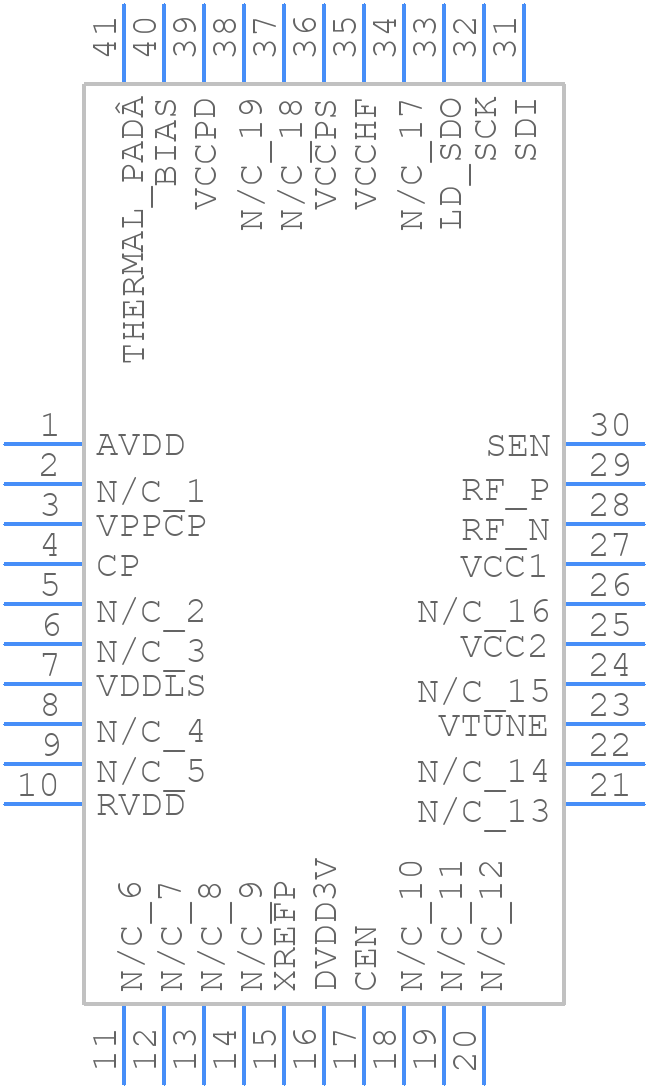

HMC1034LP6GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1034LP6GETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC836LP6CETR_2023
click to zoom
3D Models
HMC1034LP6GETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC836LP6CETR_2023
click to zoom

HMC1034LP6GETR Details

  • Manufacturer Part Number:

    HMC1034LP6GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

HMC1034LP6GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC1034LP6GETR requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The device also requires a bias voltage (VBIAS) of 1.65V to 3.3V, which can be generated using a voltage divider or a dedicated voltage regulator.
  • The HMC1034LP6GETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 4 GHz with minimal degradation in performance.
  • The HMC1034LP6GETR has a parallel interface that can be connected to a microcontroller or FPGA. The device requires a 3-wire interface (clock, data, and enable) to control the device. The interface can be operated in either master or slave mode.
  • The typical current consumption of the HMC1034LP6GETR is 350mA at 3.3V and 250mA at 5V. However, the current consumption can vary depending on the operating frequency, temperature, and other factors.
