HMC1040LP3CETR - Analog Devices

Description: GaAs pHEMT MMIC LOW NOISE AMPLIFIER, 24 - 43.5 GHz

Download HMC1040LP3CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

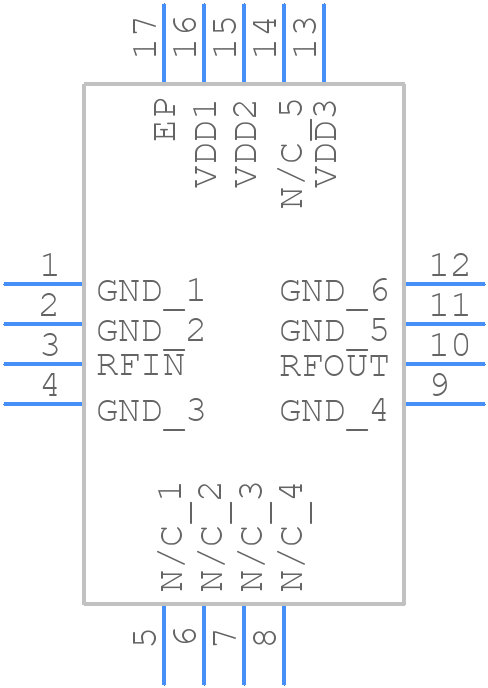

HMC1040LP3CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1040LP3CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 LEAD QFN_2024
click to zoom
3D Models
HMC1040LP3CETR - Analog Devices - 3D model - Quad Flat No-Lead - 16 LEAD QFN_2024
click to zoom

HMC1040LP3CETR Details

  • Manufacturer Part Number:

    HMC1040LP3CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.B.2.D

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    5 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    43500 MHz

  • Operating Frequency-Min:

    24000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    2.5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    85 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.92
