HMC1044LP3E - Analog Devices

Description: ANALOG DEVICES - HMC1044LP3E - LOW PASS FILTER, 1-3GHZ, HVQFN-16

Download HMC1044LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

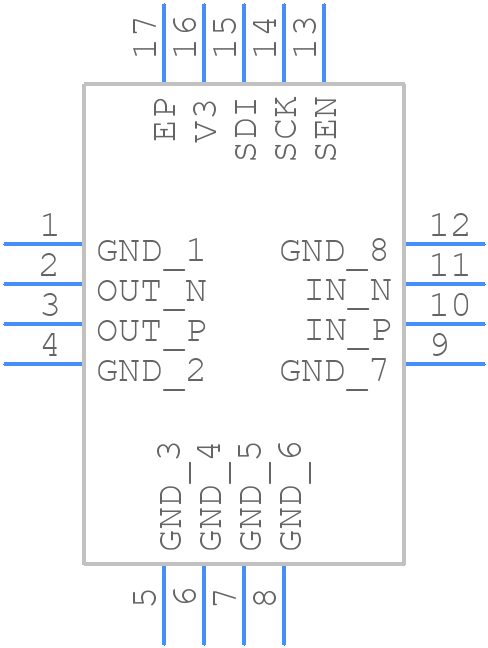

Symbol
HMC1044LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1044LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 LEAD QFN
click to zoom
3D Models
HMC1044LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16 LEAD QFN
click to zoom

HMC1044LP3E Details

  • Manufacturer Part Number:

    HMC1044LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN, LEADLESS, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Average Input Power:

    0.063 W

  • Center or Cutoff Frequency (fo/fc):

    1655 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    5 dB

  • JESD-609 Code:

    e3

  • Length:

    3.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Power Supply:

    3.3

  • Terminal Finish:

    Matte Tin (Sn)

  • Width:

    3.1 mm

HMC1044LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1044LP3E requires a single 3.3V or 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1044LP3E can support data rates up to 10.3125 Gbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
  • Use a high-speed oscilloscope to measure the signal integrity and power supply noise. Check the PCB layout for any signal routing or power supply issues. Consult the datasheet and application notes for troubleshooting guidelines.
  • The HMC1044LP3E is specified to operate from -40°C to 85°C. However, the device's performance and reliability may degrade at higher temperatures. Consult the datasheet and application notes for temperature-related specifications and guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1044LP3E Overview

Use the download button to access the HMC1044LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as General Purpose Passive Filters
