HMC1055LP2CETR - Analog Devices

Description: 0.5 GHz to 4.0 GHz, GaAs, SPST Switch

Download HMC1055LP2CETR Model
Schematic
symbols

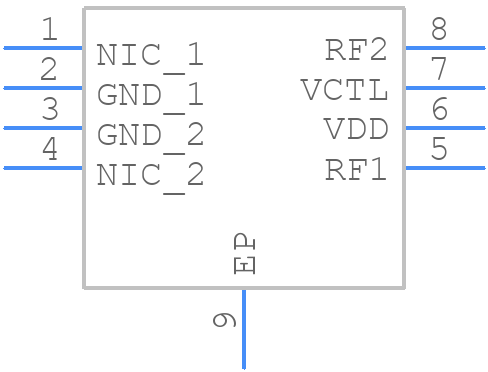

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC1055LP2CETR - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-26....
click to zoom
3D Models
HMC1055LP2CETR - Analog Devices  - 3D model - Small Outline No-lead - CP-8-26....
click to zoom

HMC1055LP2CETR Details

  • Manufacturer Part Number:

    HMC1055LP2CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-26, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-26

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    34 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.05 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORP; REFLECTIVE

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Surface Mount:

    YES

  • Technology:

    MES

  • Terminal Finish:

    Matte Tin (Sn)

HMC1055LP2CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC1055LP2CETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The bias voltage (VCC) should be connected to a quiet power supply rail.
  • The HMC1055LP2CETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, the device can operate up to 4 GHz with minimal degradation in performance.
  • The HMC1055LP2CETR has a maximum junction temperature of 150°C. Ensure good airflow around the device and use a heat sink if necessary. Avoid blocking the airflow around the device and keep the ambient temperature below 85°C.
  • The HMC1055LP2CETR has internal ESD protection, but additional external protection is recommended. Use a TVS diode or a transient voltage suppressor to protect the device from electrostatic discharge.
