HMC1056LP4BE - Analog Devices

Description: Up/Down Conv Mixer 12GHz 20-Pin QFN EP T/R

Download HMC1056LP4BE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

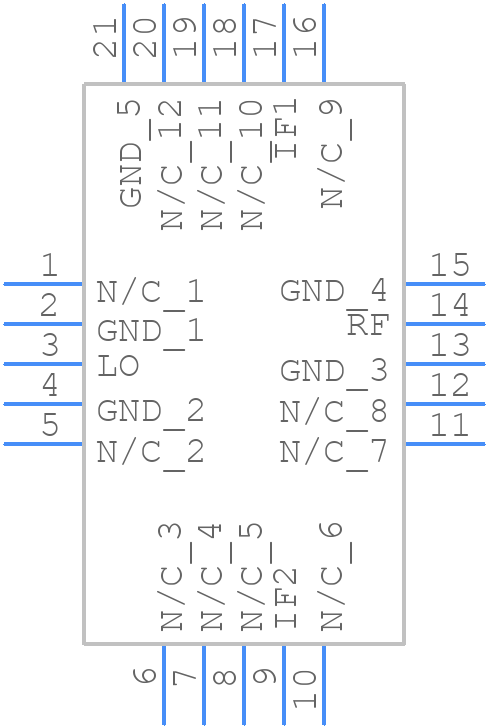

HMC1056LP4BE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1056LP4BE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN_20
click to zoom
3D Models
HMC1056LP4BE - Analog Devices - 3D model - Quad Flat No-Lead - QFN_20
click to zoom

HMC1056LP4BE Details

  • Manufacturer Part Number:

    HMC1056LP4BE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    HCP-20-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    16 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    IMAGE REJECTION

  • Terminal Finish:

    Matte Tin (Sn)

HMC1056LP4BE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1056LP4BE requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1056LP4BE can support data rates up to 10.3125 Gbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal integrity.
  • Use a high-speed oscilloscope to measure the signal integrity and power supply noise. Check the PCB layout for any signal routing or power supply issues. Consult the datasheet and application notes for troubleshooting guidelines.
  • The HMC1056LP4BE is specified to operate from -40°C to 85°C. However, the device's performance may degrade at higher temperatures. Consult the datasheet for temperature-related specifications and derating guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1056LP4BE Overview

Use the download button to access the HMC1056LP4BE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
