HMC1056LP4BETR footprint, schematic symbol and 3D model by Analog Devices

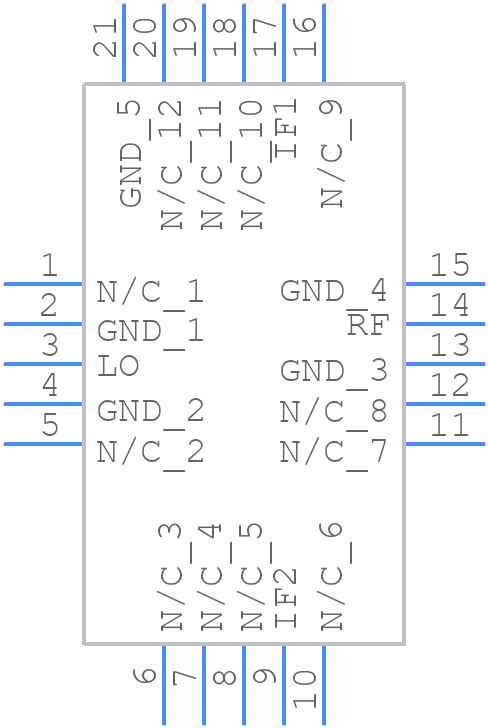

Symbol

click to zoom

PCB Footprints

HMC1056LP4BETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC1056LP4BETR
Part Number HMC1056LP4BETR
Manufacturer Analog Devices
Pin Count 21
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP-1
Released Date Aug 25, 2026
Last Modified Date Aug 25, 2026 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

HMC1056LP4BETR Details

Manufacturer Part Number:
HMC1056LP4BETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
20
Manufacturer Package Code:
HCP-20-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Conversion Loss-Max:
11 dB
Input Power-Max (CW):
16 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
20
Operating Frequency-Max:
12000 MHz
Operating Frequency-Min:
8000 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC20,.16SQ,20
RF/Microwave Device Type:
IMAGE REJECTION
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)

HMC1056LP4BETR Frequently Asked Questions (FAQs)

A good PCB layout for the HMC1056LP4BETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the power supply and digital signals.
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. The device requires a single 5V supply, and the recommended bias current is 30mA. Additionally, ensure that the bias voltage is well-regulated and decoupled to minimize noise and ripple.
The HMC1056LP4BETR is designed to handle a maximum input power of +20dBm (100mW). Exceeding this power limit can cause damage to the device or affect its performance. It's essential to ensure that the input power is within the recommended range to maintain the device's reliability and performance.
To troubleshoot common issues with the HMC1056LP4BETR, start by checking the PCB layout and ensuring that it meets the recommended guidelines. Verify that the device is properly biased and that the input power is within the recommended range. Check for any signs of damage or overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices' technical support.
The recommended operating temperature range for the HMC1056LP4BETR is -40°C to +85°C. Operating the device outside this range can affect its performance, reliability, and lifespan. Ensure that the device is properly heat-sinked and that the operating temperature is within the recommended range to maintain optimal performance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC1056LP4BETR Overview

Use the download button to access the HMC1056LP4BETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Mixers
