HMC1060LP3E - Analog Devices

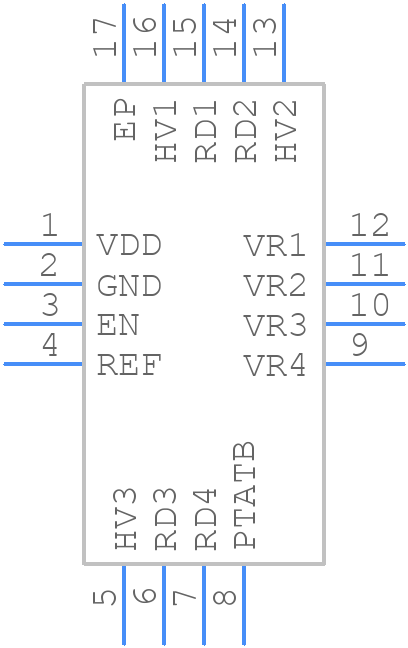

HMC1060LP3E Details

• Manufacturer Part Number:

  HMC1060LP3E

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  QFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  HCP-16-3

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Adjustability:

  FIXED/ADJUSTABLE

• Input Voltage Absolute-Max:

  6.5 V

• JESD-30 Code:

  S-PQCC-N16

• JESD-609 Code:

  e3

• Length:

  3 mm

• Load Regulation-Max:

  0.105%

• Load Regulation-Max(%):

  2.1%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  4

• Number of Terminals:

  16

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.1 A

• Output Current2-Max:

  0.05 A

• Output Voltage1-Max:

  3.399 V

• Output Voltage1-Min:

  3.201 V

• Output Voltage1-Nom:

  3.3 V

• Output Voltage2-Max:

  5.2 V

• Output Voltage2-Min:

  1.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.12SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Voltage Tolerance-Max:

  3%

• Width:

  3 mm
