HMC1063LP3E - Analog Devices

Description: RF Mixer mix, IQ, 24-28GHz

Download HMC1063LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

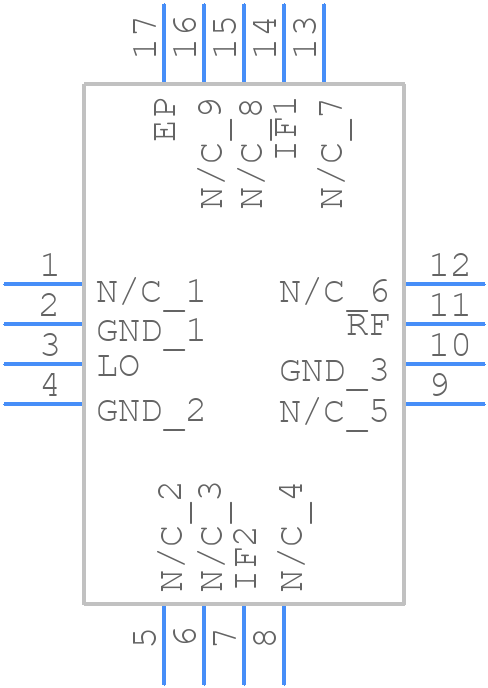

HMC1063LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1063LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC344LP3E
click to zoom
3D Models
HMC1063LP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC344LP3E
click to zoom

HMC1063LP3E Details

  • Manufacturer Part Number:

    HMC1063LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    28000 MHz

  • Operating Frequency-Min:

    24000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    IMAGE REJECTION

  • Terminal Finish:

    Matte Tin (Sn)

HMC1063LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1063LP3E requires a single 3.3V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors in parallel.
  • The maximum input power is +10dBm. Exceeding this may cause compression or damage to the device.
  • Use the internal bias circuitry to adjust the operating frequency. For example, to optimize for 2.4GHz, set the bias voltage to 1.2V and adjust the external matching network accordingly.
  • The typical current consumption is 35mA at 3.3V. However, this may vary depending on the operating frequency and input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1063LP3E Overview

Use the download button to access the HMC1063LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
