HMC1065LP4E - Analog Devices

Description: Up/Down Conv Mixer 34GHz 24-Pin QFN EP T/R

Download HMC1065LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

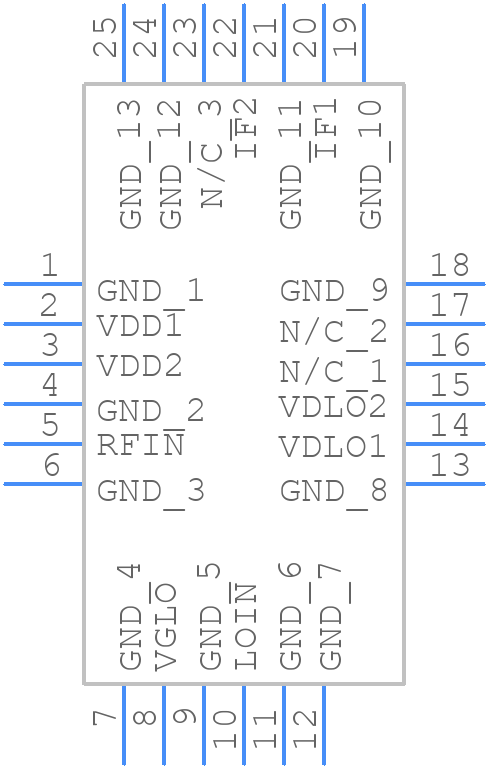

HMC1065LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1065LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
HMC1065LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

HMC1065LP4E Details

  • Manufacturer Part Number:

    HMC1065LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    9 dB

  • IF Frequency-Max:

    4000 MHz

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF Input Frequency-Max:

    34000 MHz

  • RF Input Frequency-Min:

    27000 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)

HMC1065LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1065LP4E requires a single 5V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors.
  • The maximum input power is +10 dBm. Exceeding this may cause compression or damage to the device.
  • Use the internal bias circuitry to optimize the device for the desired frequency band. Consult the datasheet for specific biasing recommendations for different frequency bands.
  • The typical current consumption is 120 mA at 5V. However, this may vary depending on the operating frequency and input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1065LP4E Overview

Use the download button to access the HMC1065LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Up/Down Converters
